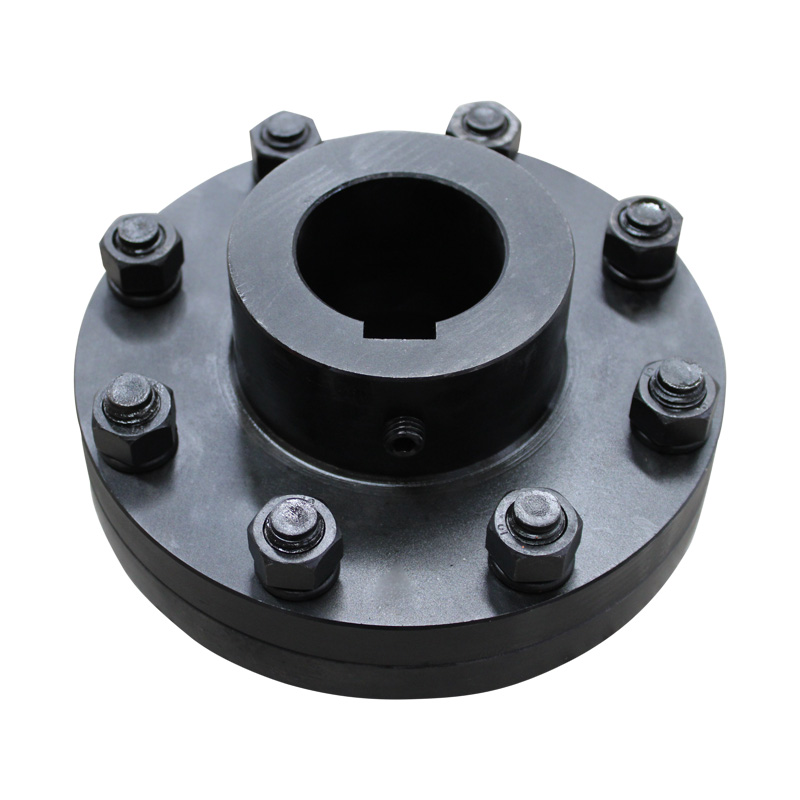

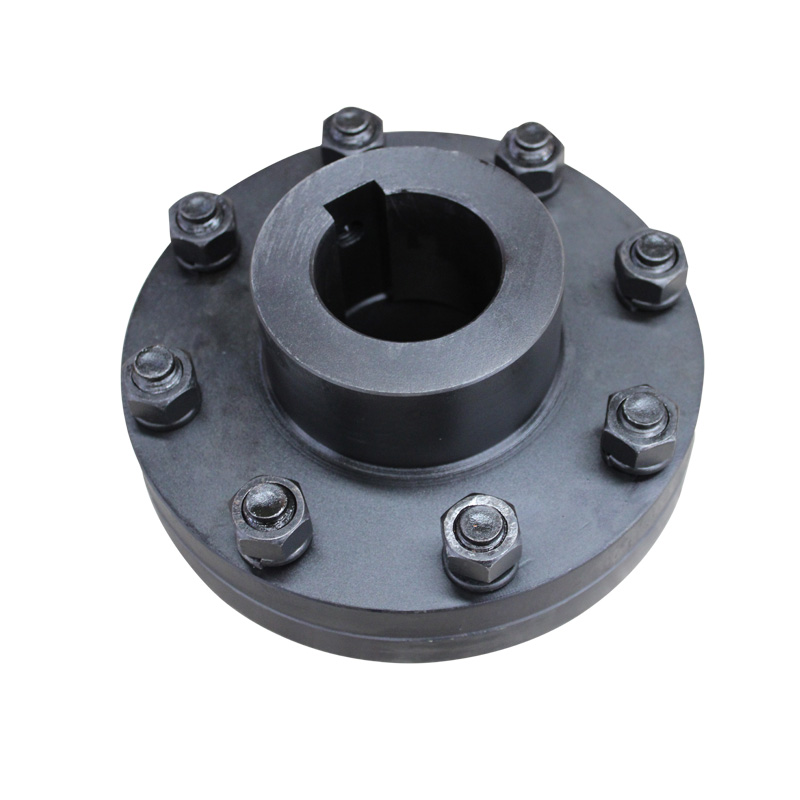

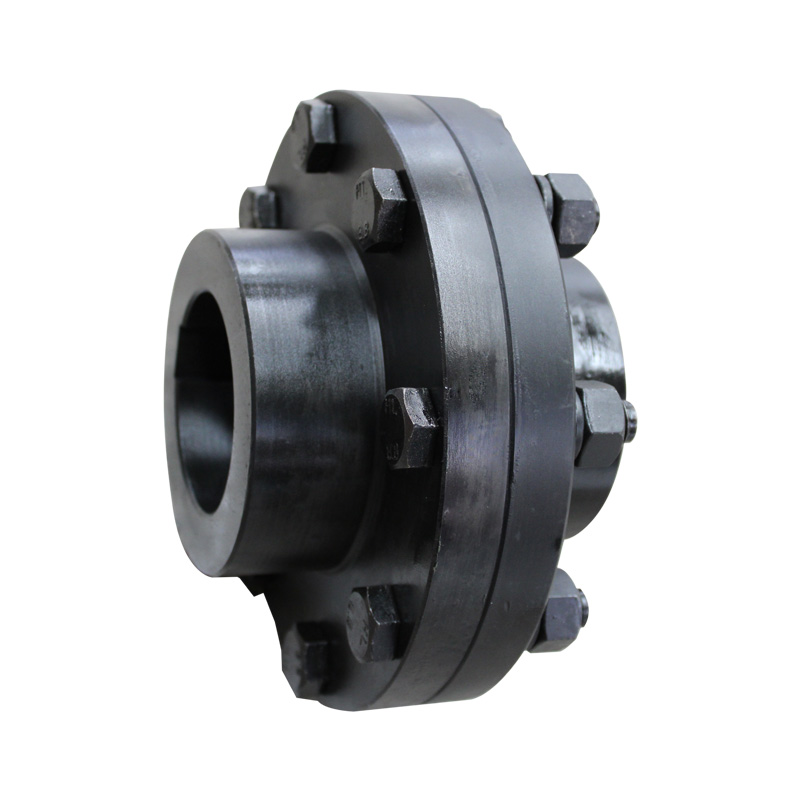

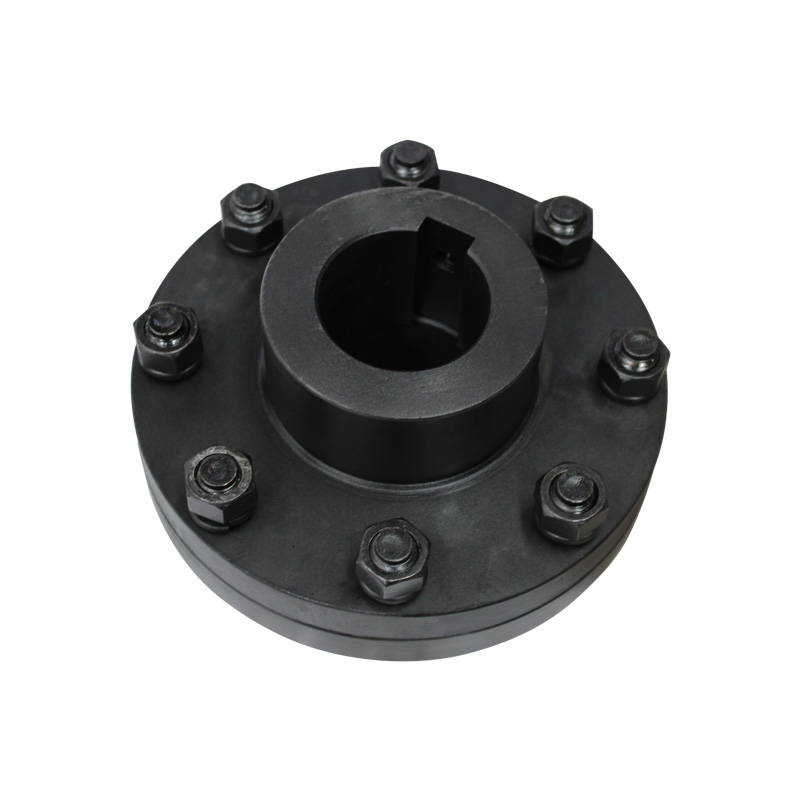

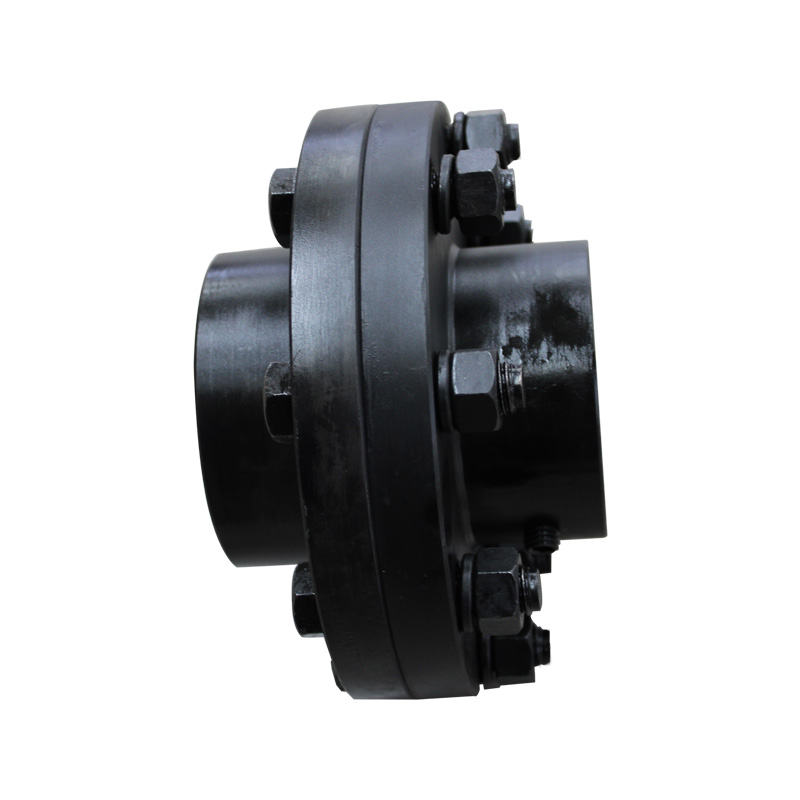

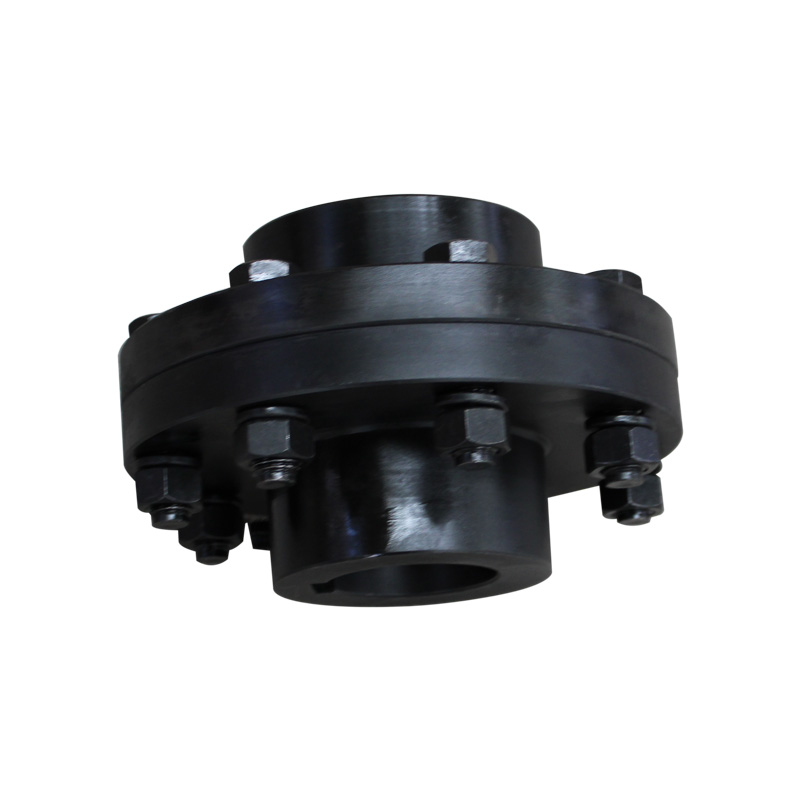

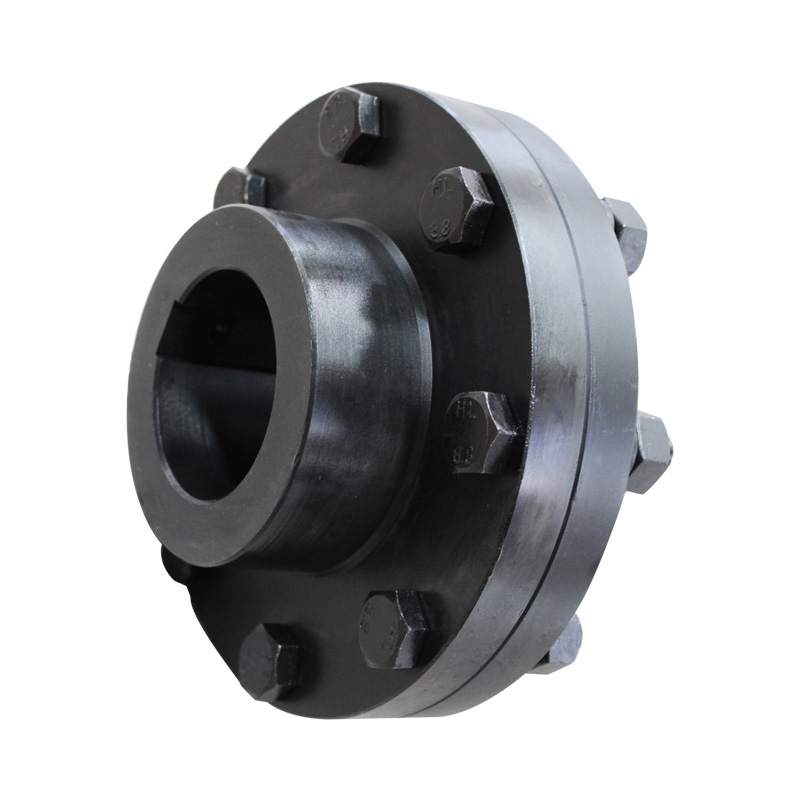

YL Flange Coupling



English



PRODUCTS



YL Flange Coupling

Rongxing Driving is a professional R&D and manufacturer of Rigid Coupling , rigid shaft coupling , rigid split shaft couplings . and has won unanimous praise from the majority of users.

INQUIRY

Product Details

YL Flange Coupling Parameters And Dimensions

Type	Nominal Torque TnN • m	Allowable Speed [n] r/min	Shaft Hole Diameter d	Shaft Hole Length L	D	D,	b	S	b,	Blot		Inertia Moment kg • m	Weightkg
Type	Nominal Torque TnN • m	Allowable Speed [n] r/min	Shaft Hole Diameter d	Y J.	D	D,	b	S	b,	d.	n	Inertia Moment kg • m	Weightkg
YL1	63	6300	22 〜30	38 〜82	120	48	36	8	52	M10	4	0. 006	4. 10
YL2	200	5800	30 〜42	60 〜112	130	68	36		52			0. 008	6. 97
YL3	400	5000	40 〜50	84 〜112	150	80	40		56			0. 021	9. 38
YL4	800	4400	50 〜63	84 〜142	170	100	40		56	M12	8	0. 039	23. 27
YL5	2000	3600	63 〜80	107〜172	210	130	50	10	68	M12		0. 122	30. 72
YL6	5000	2800	80 〜100	132〜212	260	160	66		84	M16		0. 360	57. 95
YL7	10000	2500	100〜125	167〜212	300	200	72		90	M16	10	0. 845	86. 10
YL8	25000	1900	125〜160	167〜302	400	260	80		98	M24	10	2. 693	202.3
YL9	50000	1600	160—200	242〜352	460	320	92	12	112	M24	16	6. 962	326
YL10	100000	1200	200〜250	282〜410	590	400	104	12	124	M30	16	20. 550	622
Note: ① Weight and moment of inertia are approximate values calculated according to the minimum diameter and maximum length of the shaft hole of the I-type coupling. ② The same type of shaft hole can be arbitrarily combined.
