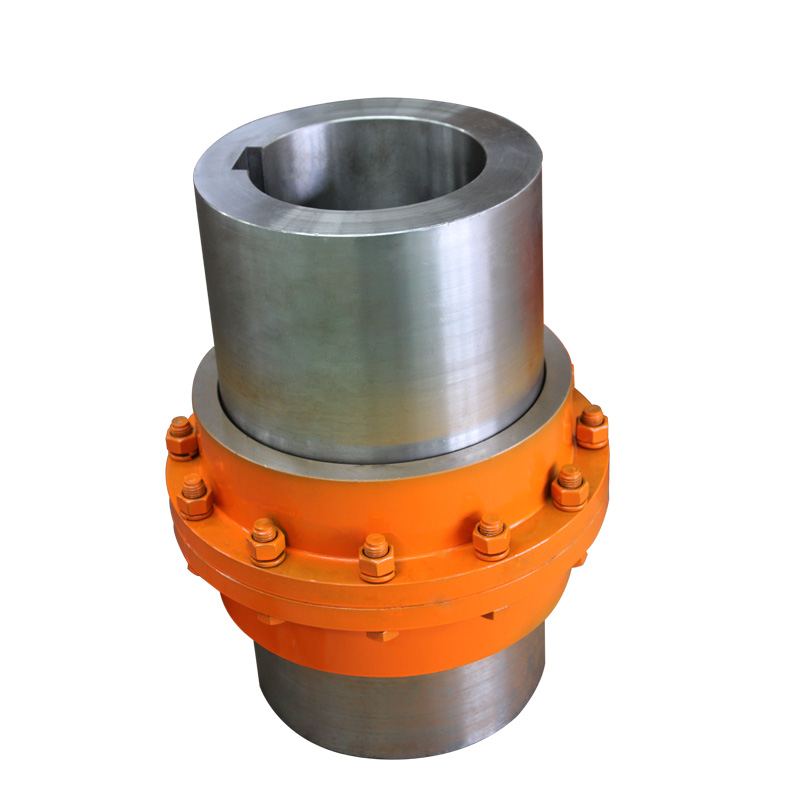

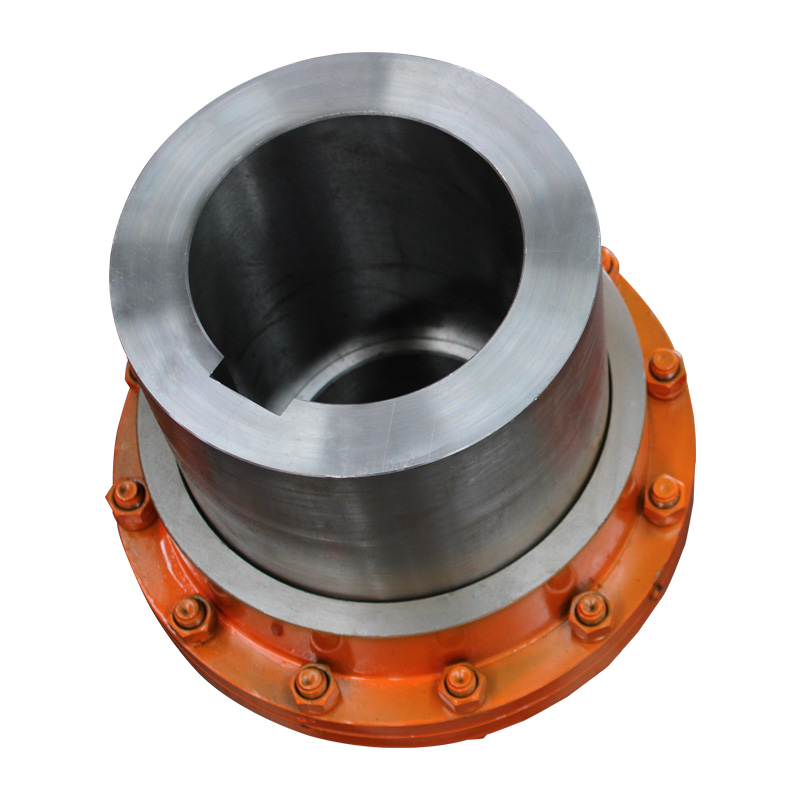

GⅡCL Drum Gear Coupling

Rongxing Driving is a professional R&D and manufacturer of wheel drum coupling , brake gear coupling , Nylon Internal Gear Ring Coupling . and has won unanimous praise from the majority of users.

INQUIRY

Product Details

GⅡCL Drum Gear Coupling Parameters And Dimensions mm

Type	Nominal Torque TnKN・m	Allowable Speed [n] r/min	Shaft Hole Diameter d	Shaft Hole Length LY J,	D	D,	d2	C	A	B,	Weight kg	Inertia Moment kg • m2
GHCL1	0.4	4000	16 〜35	38 〜82	103	71	50	8	36	76	5. 1	0. 0037
G1ICL2	0.71	4000	20 〜45	44 〜112	115	83	60	8	42	88	6.2	0. 0067
GIICL3	1. 12	4000	22 〜56	44 〜112	127	95	75	8	44	90	8.6	0.0113
GIICL4	1.8	4000	38 〜65	60 〜142	149	116	90	8	49	98	14.5	0. 0245
G1ICL5	3. 15	4000	40 〜75	84 〜142	167	134	105	10	55	108	19.6	0. 0433
GIICL6	5.0	4000	45 〜90	84 〜172	187	153	125	10	56	110	31.2	0. 0843
GIICL7	7. 1	3750	50 〜105	84 〜212	204	170	140	10	60	118	47.5	0. 151
GIICL8	10.0	3300	55 〜115	84 〜212	230	186	155	12	67	142	60.2	0. 241
GIICL9	16.0	3000	60 〜135	107〜252	256	212	180	12	69	146	95.8	0. 470
GII CLIO	22.4	2650	65 〜150	107〜252	287	239	200	14	78	164	119	0. 745
GIICL11	32.5	2350	70 〜175	107〜302	325	276	235	14	81	170	189	1.588
GIICL12	50.0	2100	75 〜200	107〜352	362	313	270	16	89	190	285	3. 055
GIICL13	71.0	1850	150〜225	202〜352	412	350	300	18	98	208	360	4.918
GIICL14	112	1650	170〜250	242〜410	462	420	335	22	172	296	544	9. 725
GIICL15	180	1500	190〜285	282〜470	512	470	380	22	182	316	786	17. 45
GIICL16	250	1300	220〜320	282〜470	580	522	430	28	198	354	1027	29. 1
GIICL17	355	1200	250〜365	330〜550	644	582	490	28	209	364	1532	53. 725
GIICL18	500	1050	280〜400	380〜650	726	658	540	28	222	430	2278	99.5
GIICL19	710	950	300〜370	380〜650	818	748	630	32	232	440	3026	175.5
GIICL20	1000	800	360〜540	450〜800	928	838	720	32	247	470	4430	360. 75
GIICL21	1400	750	400〜600	540〜800	1022	928	810	40	255	490	6152	561.5
GIICL22	1800	650	450〜680	540〜900	1134	1036	915	40	262	510	7738	904. 75
GIICL23	2500	600	530〜770	680〜900	1282	1178	1030	50	299	580	11553	1725
GIICL24	3550	550	560〜850	680〜1000	1428	1322	1175	50	317	610	16615	3131.75
GIICL25	4500	460	670〜1040	780〜1100	1644	1538	1390	50	325	620	27797	7198. 25
Note: 1. The weight and moment of inertia of the coupling are calculated according to the type J hole.2. It is recommended to choose the length of J-shaped hole.3. Nitriding and surface quenching shall be agreed in the contract.
