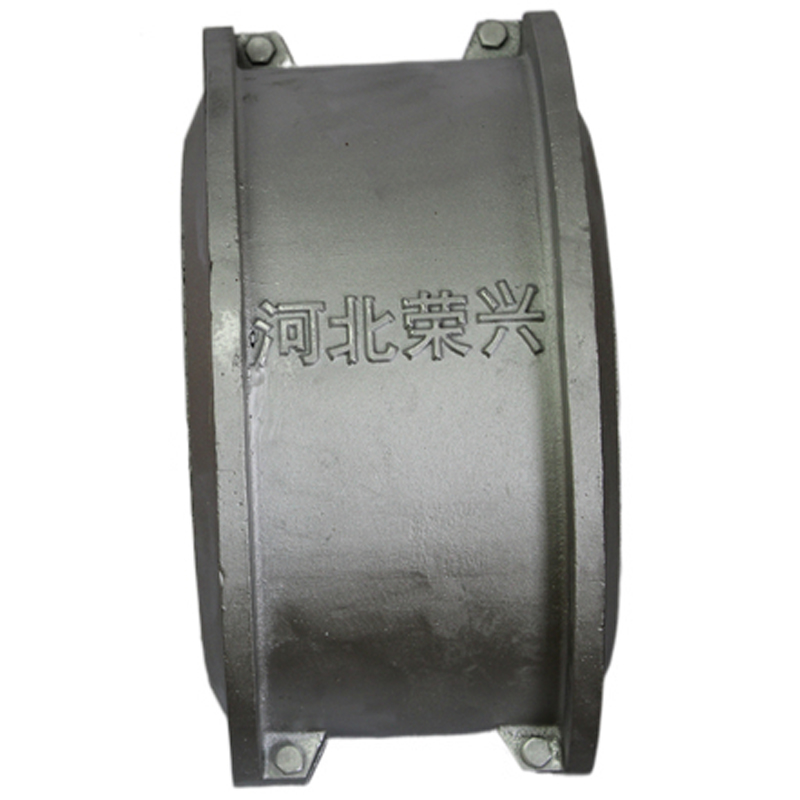

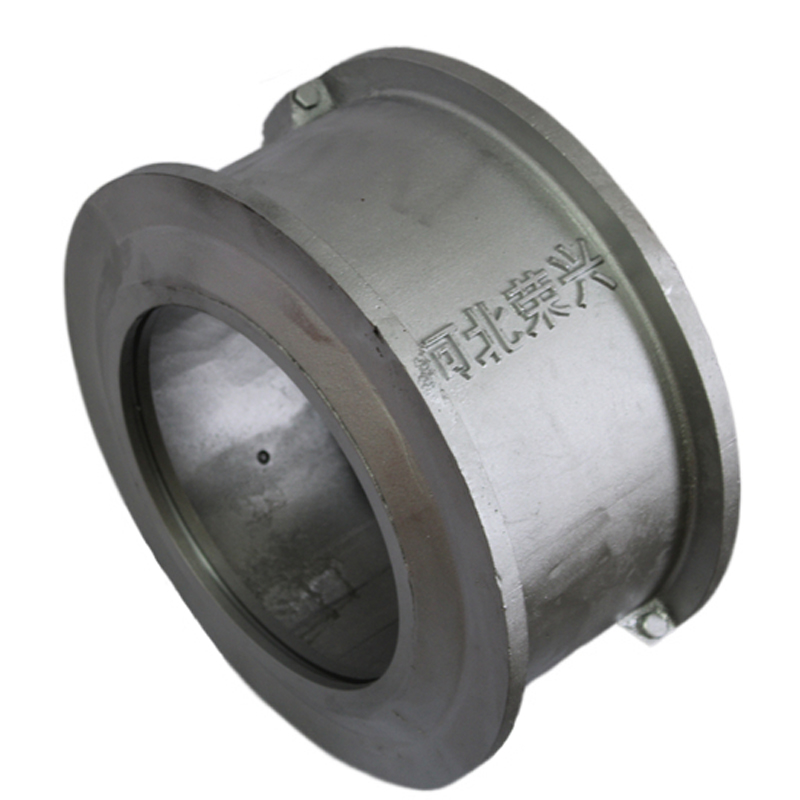

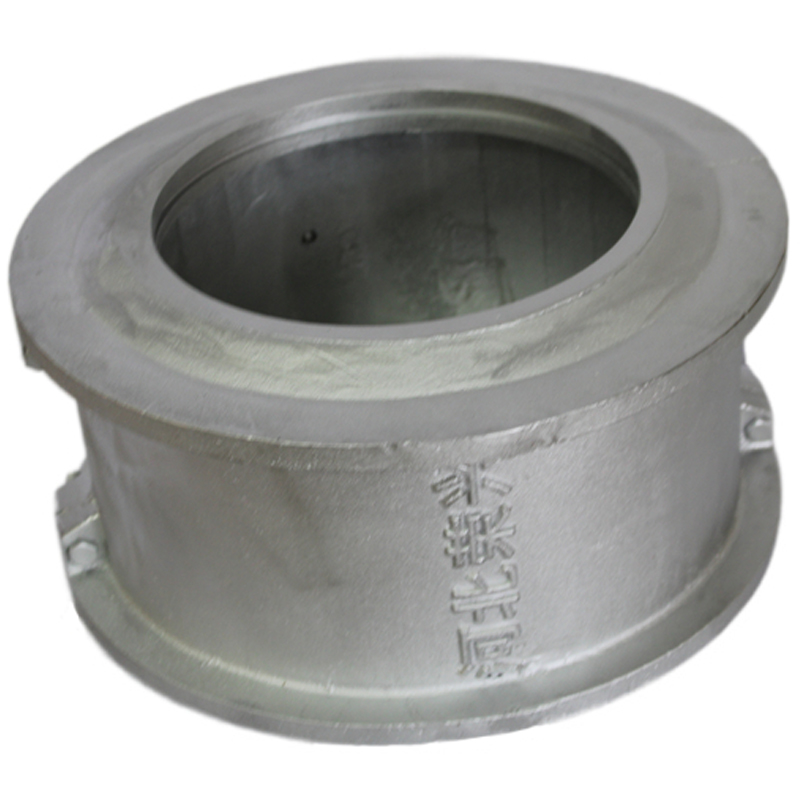

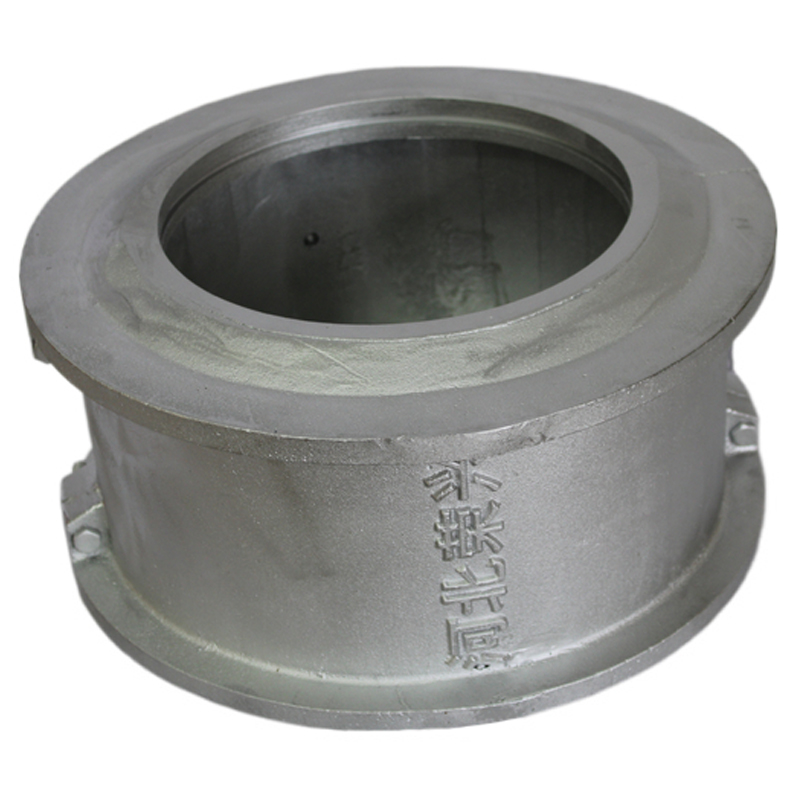

Snake Spring Coupling Housing
Rongxing Driving is a professional R&D and manufacturer of ZLD type conical shaft hole elastic coupling , conical shaft hole elastic coupling. and has won unanimous praise from the majority of users.
INQUIRY

Product Details






The Basic Parameters And Main Dimensions Of The Snake - Shaped Yellow Coupling     mm


Model

Nominal Torque Tn

N • m

Allowable speed [n] r/min

Shaft hole diameter d mm

Shaft hole length L

mm

Overall length Lo

mm

L, mm

D mm

Clearance C mm

inertia  moment  I

kg. m2

Weight

kg

JSA1

45


18 〜28

47

97

66

95


0. 0014

1.91

JSA2

140

4500

22 〜35

68

105


0. 0022

2. 59

JSA3

224

25 〜42

50

103

70

115


0. 0033

3. 36

JSA4

400


32 〜50

60

123

80

130

3

0. 0073

5. 45

JSA5

630

4350

40 〜56

63

129

92

150

0.0119

7. 26

JSA6

900

4125

48 〜65

76

155

95

160


0. 0185

10. 44

JSA7

1800


55 〜80

89

181

116

190


0. 0451

17. 70

JSA8

3150

OvvU

65 〜95

98

199

122

210


0. 0787

25. 42

JSA9

5600

2000

75 〜110

120

245

155

250


0. 1780

42. 22

JSA10

8000

2250

80 〜120

127

259

162

270

0. 2700

54. 45

JSA11

12500

2025

90 〜140

149

304

192

310


0.5140

81.27

JSA12

18000

1800

110〜170

162

330

195

346


0. 9890

121.00

JSA13

25000

1650

120〜200

184

374

201

384


1. 8500

178. 00

JSA14

35500

1500

140〜200

184

374

271

450


3. 4900

234

JSA15

50000

1350

160〜240

198

402

279

500

6

5. 8200

317

JSA16

63000

1225

180〜280

216

438

304

566


10. 4000

448

JSA17

90000

1100

200〜300

239

484

322

630


18. 3000

620

JSA18

125000

1050

240〜320

260

526</p
