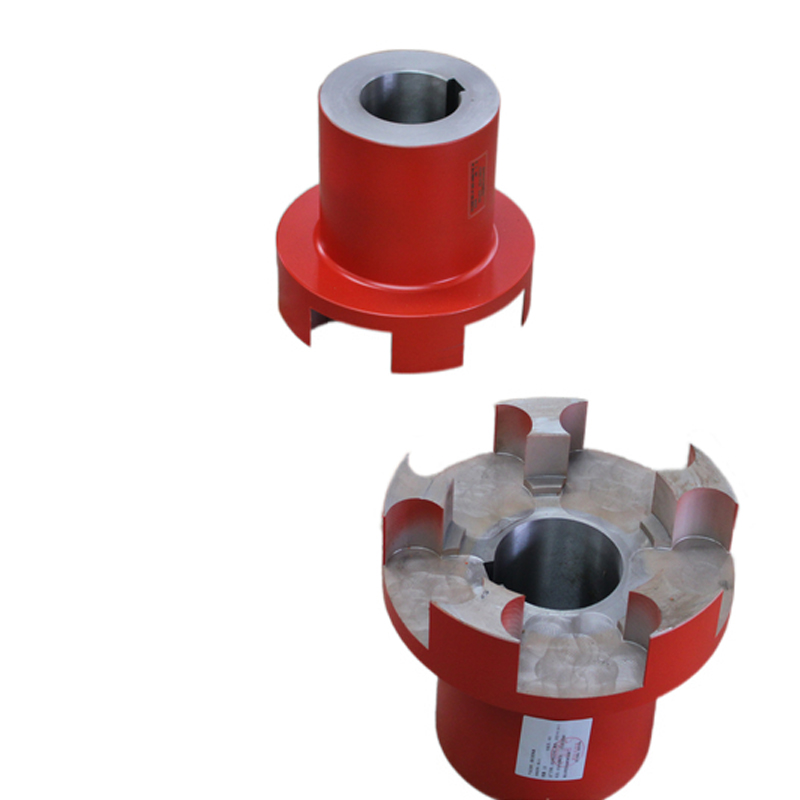

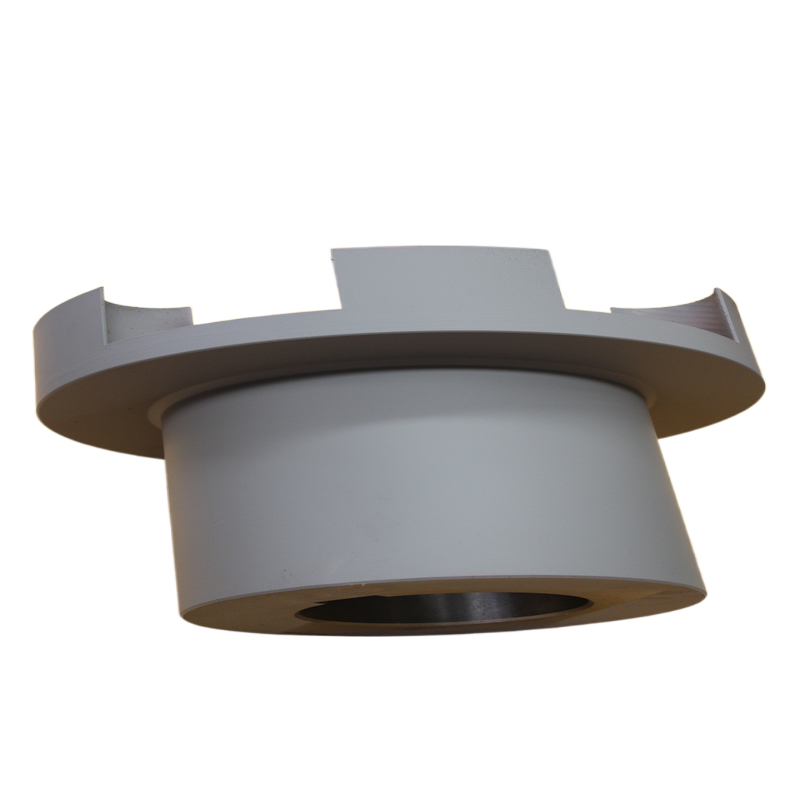

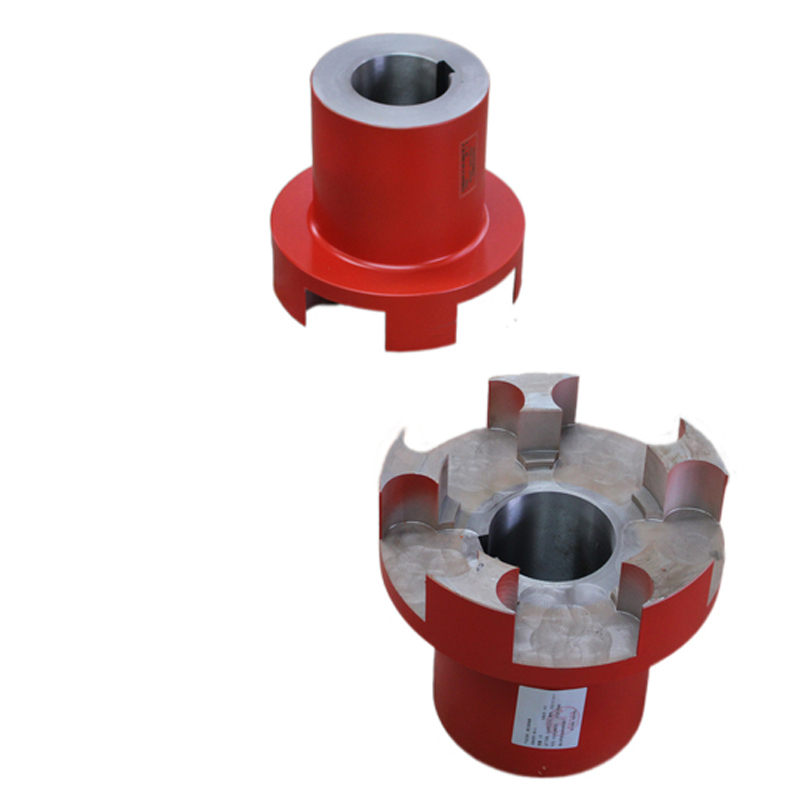

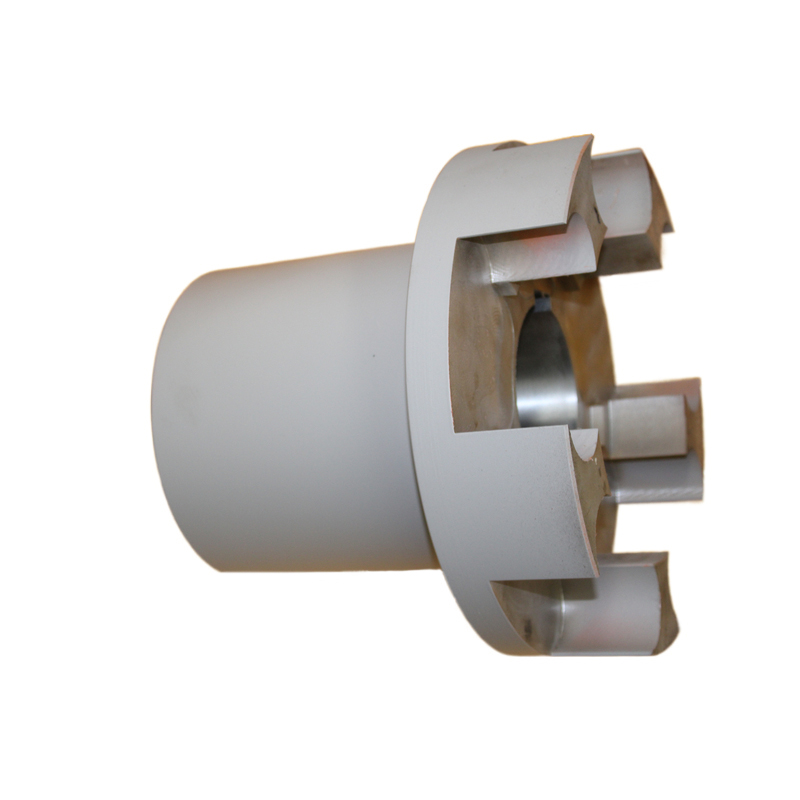

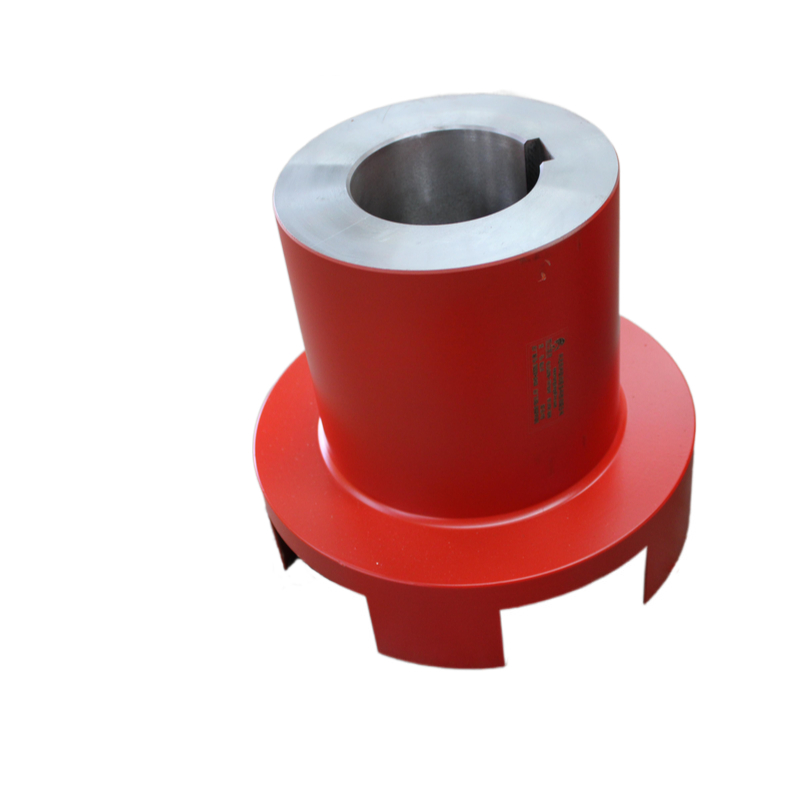

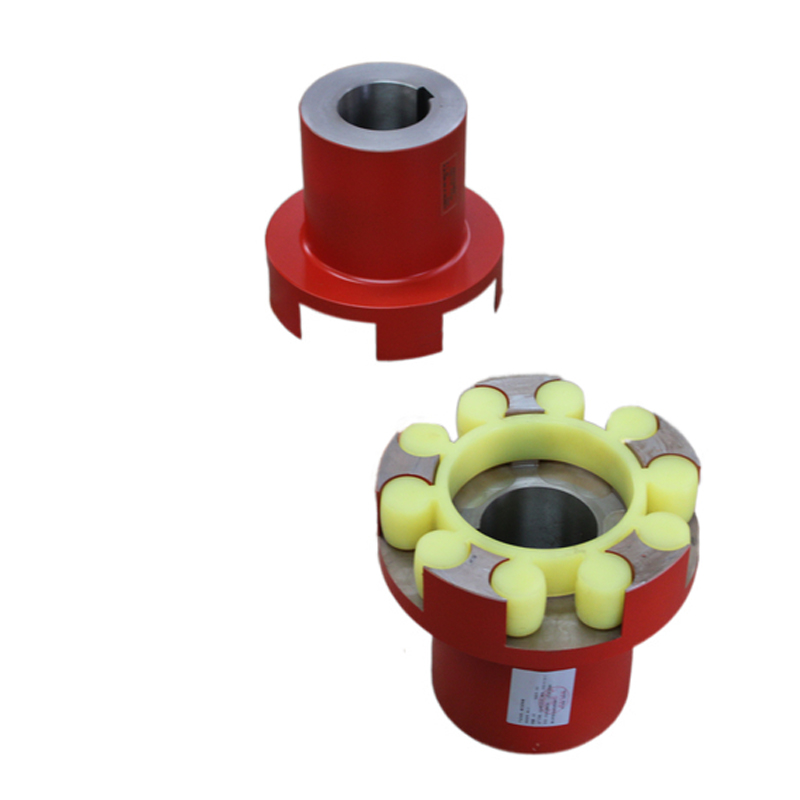

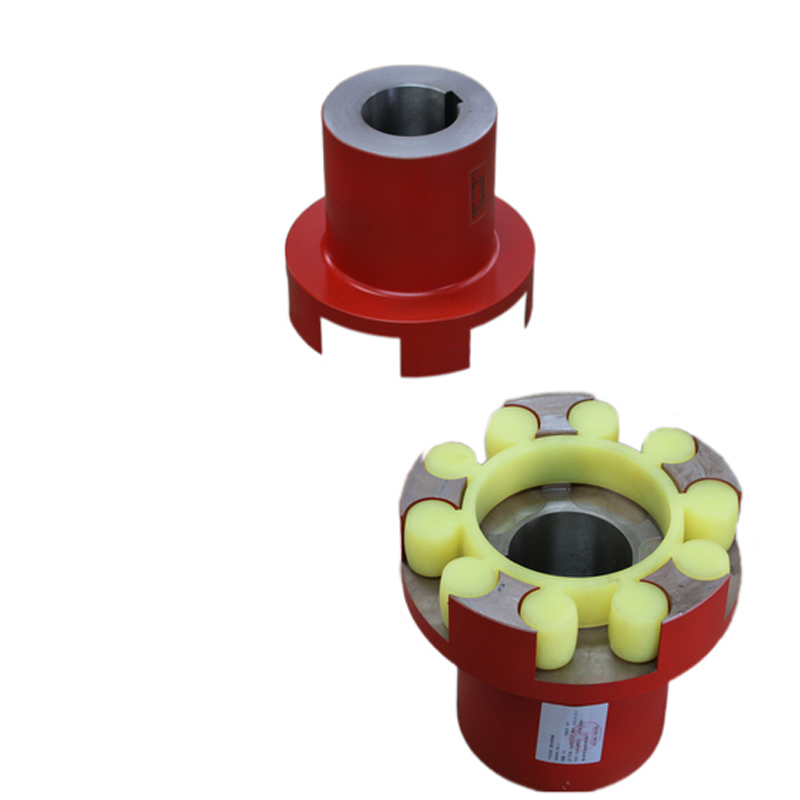

Mll11 Quincunx Elastic Coupling



English



PRODUCTS



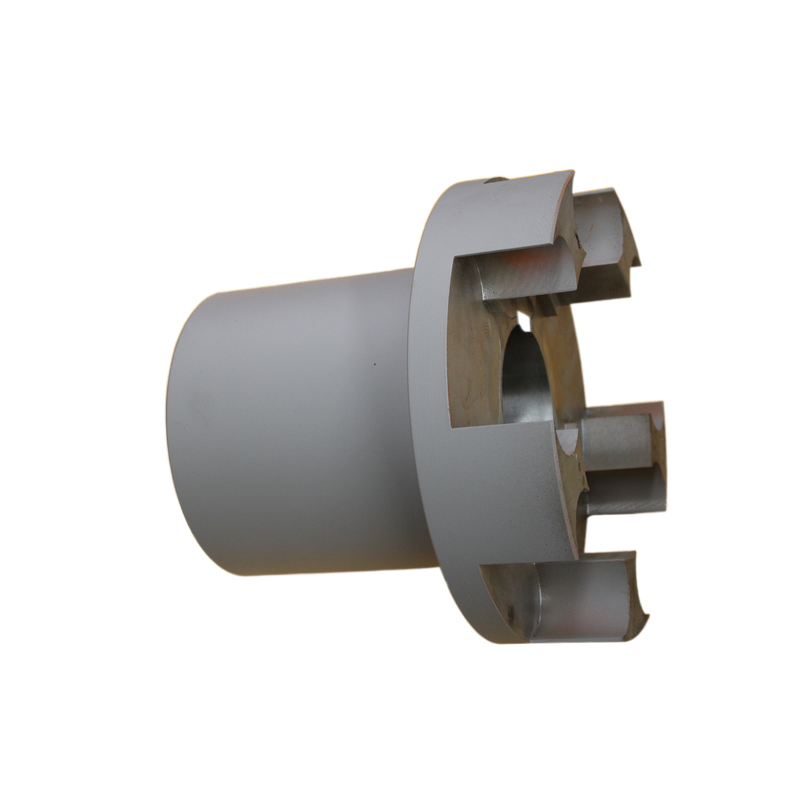

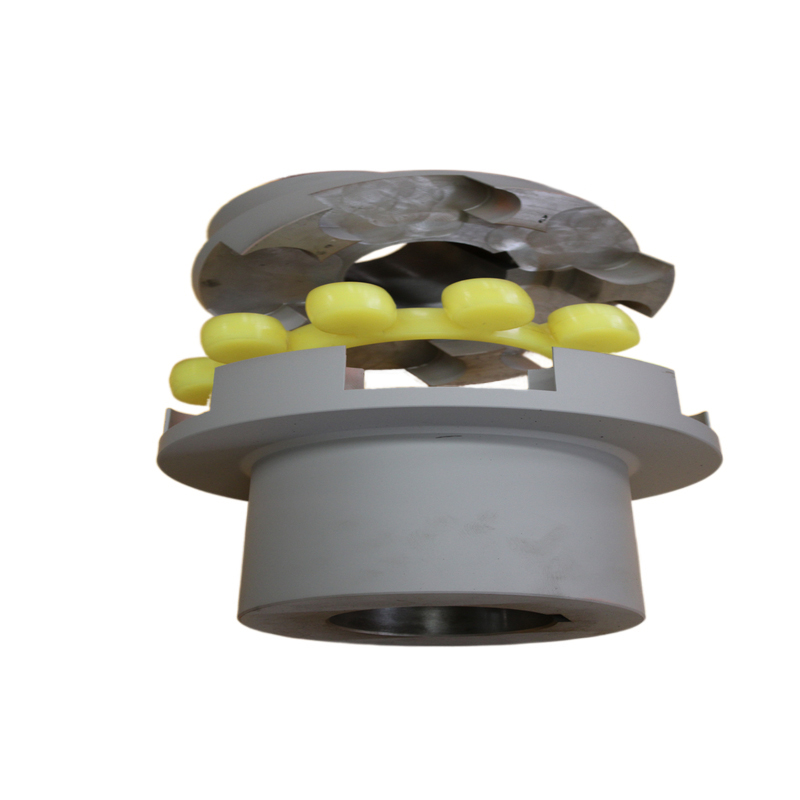

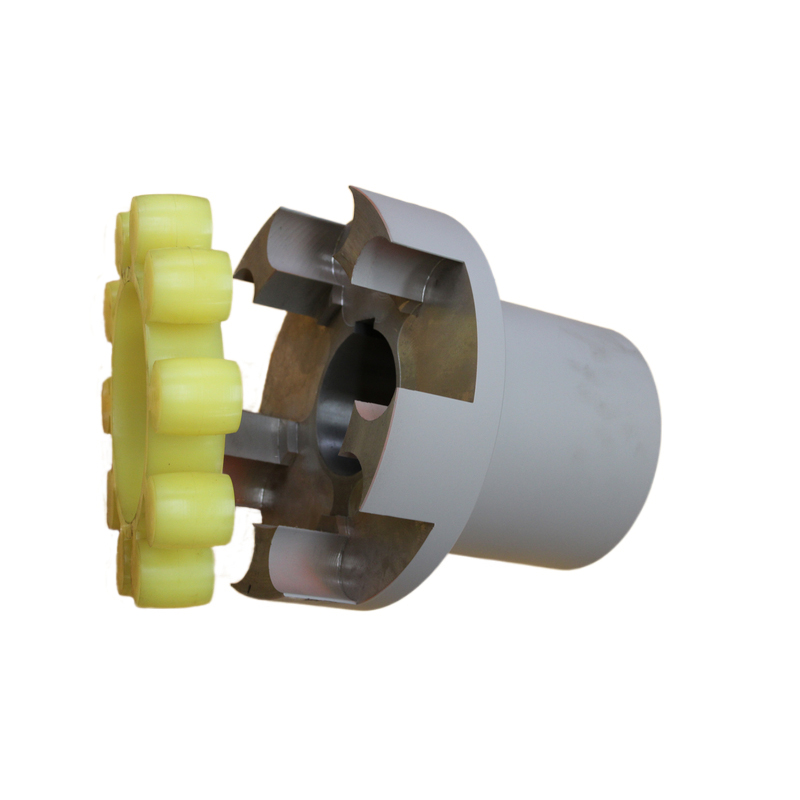

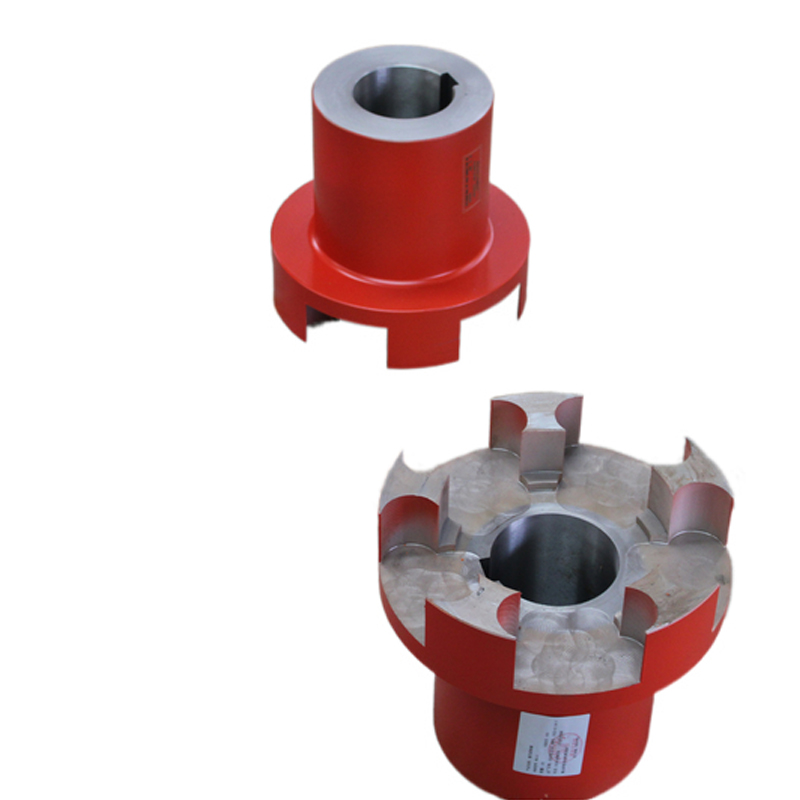

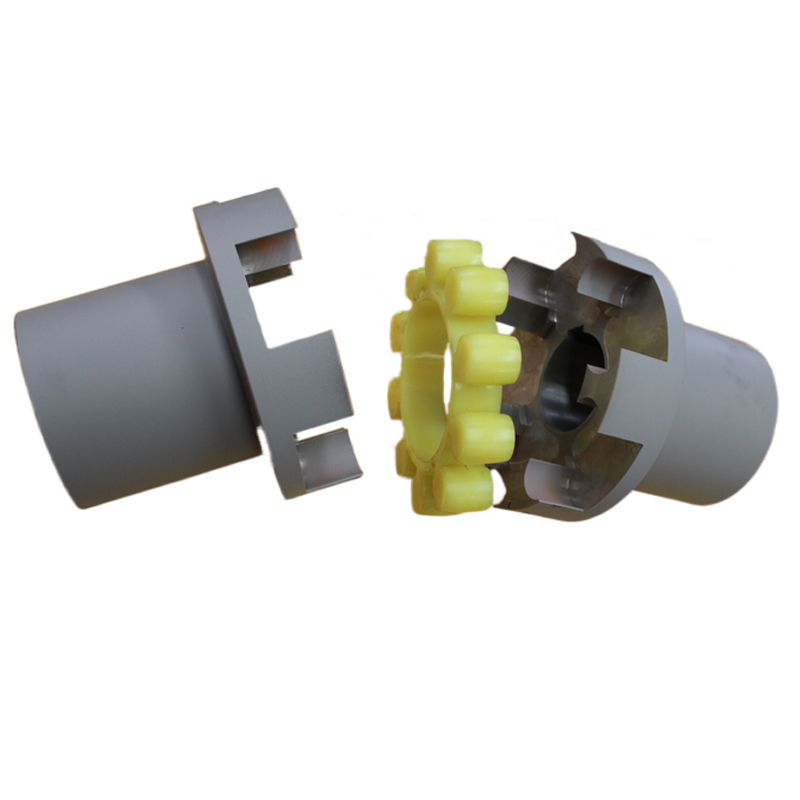

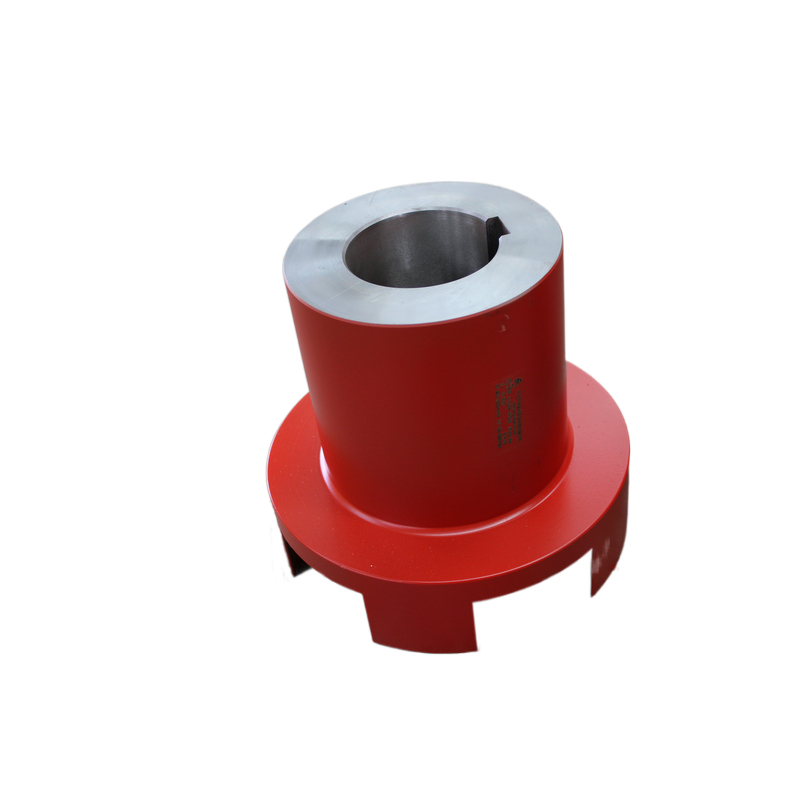

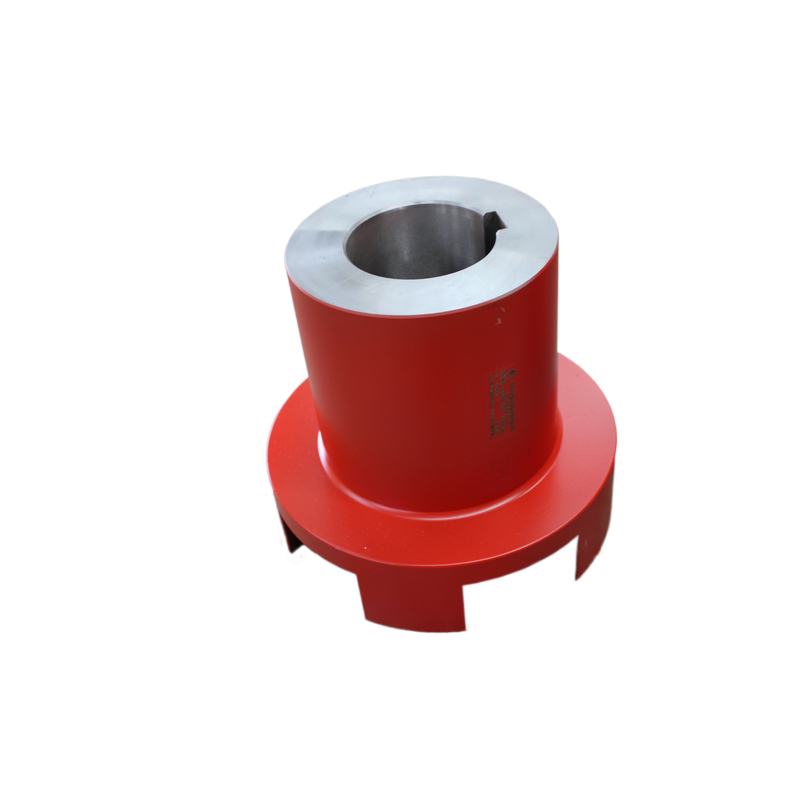

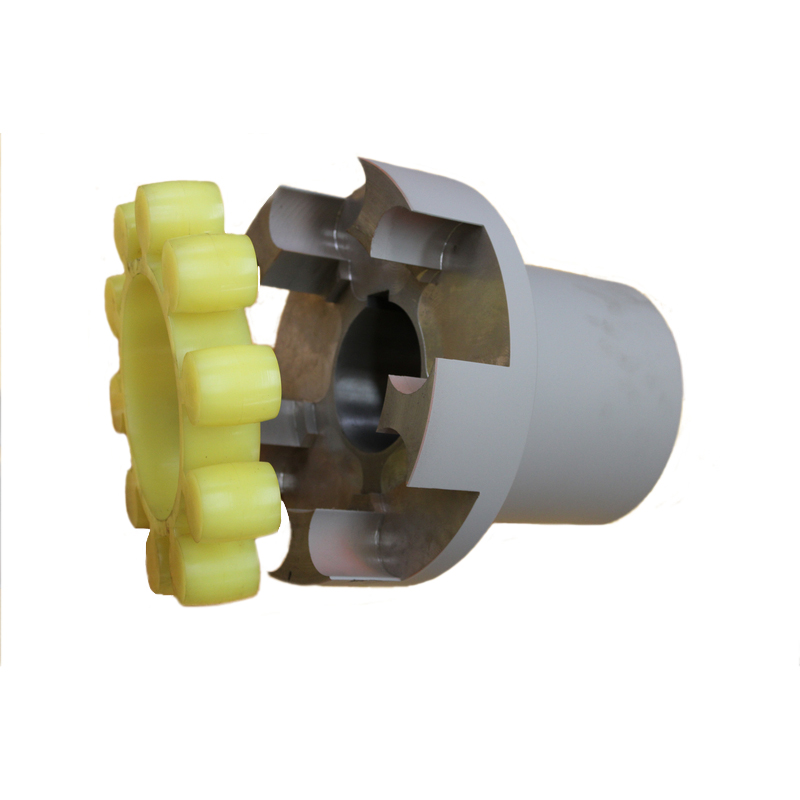

Mll11 Quincunx Elastic Coupling

Rongxing Driving is a professional R&D and manufacturer of plum-shaped elastic coupling , Split brake wheel plum-shaped elastic coupling. and has won unanimous praise from the majority of users.

INQUIRY

Product Details

Main Parameters And Dimensions Of Quine Type Elastic Coupling With Brake Wheel JB/ZQ4728-2006

Model	Nominal Torque Tn N.m	Allowable Speed[n] r/mi n	Shaft Hole Diameter d 1 dz	Shaft Hole Length		D0	B	D	E -E1	C	Weightkg
				Y J1 Z1ModelL	Z JModel L L1
MLL4-I-160	250	4750	25 〜42	62 〜112	44 〜84	160	70	105	27	30	9.5
MLL4-I1-160					100				38.5		13. 24
MLL4-I-200	250	3800	25 〜42	62 〜112	44 〜84	200	85	105	27	30	11.70
MLL4-I1-200					100				38.5		14. 79
MLL5-I-200	400	3800	30 〜48	82 〜112	60 〜84	200	85	125	33	30	14. 1
MLL5-I1-200					115				45		18.31
MLL6-I-200	630	3800	35〜42〜55	82 〜112	60 〜84	200	85	145	39	40	17.2
MLL6-I1-200					115				52		22. 43
MLL6-I-250	630	3050	35〜42〜55	82 〜112	60 〜84	250	105	145	39	40	22. 1
MLL6-I1-250					145				52		32.61
MLL7-I-250	1120	3050	45〜48〜65	112〜142	84 〜107	250	105	170	41	40	29.5
MLL7-I1-250					145				55		36. 84
MLL7-I-315	1120	2400	45〜48〜75	112〜142	84 〜107	315	135	170	41	40	36.2
MLL7-I1-315					175				55		54. 42
MLL8-I-315	1800	2400	50〜55〜75	112〜142	84 〜107	315	135	200	48	40	45.7
MLL8-I1-315					175				64		68. 11
MLL8-I-400	1800	1900	50〜55〜75	112〜142	84 〜107	400	170	200	48	40	90. 13
MLL8-I1-400					210				64		96. 98
MLL9-I-400	2800	1900	60〜65〜95	142〜172	107〜132	400	170	230	50	39	111. 18
MLL9-I1-400					210				70		116.81
MLL9-I-500	2800	1500	60〜65〜95	142〜172	107〜132	500	210	230	50	54	118.9
MLL9-I1-500					264				70		167. 99
MLL10-I-500	4500	1500	70 〜80 〜110	142〜212	107〜167	500	210	260	60	54	155. 32
MLL10-II-500					264				84		204. 72
MLL11-1-630	6300	1200	80 〜95 〜120	172〜212	132〜167	630	265	300	67	52	231. 10
MLL11-II-630					317				84		337. 98
MLL12-I-710	11200	1050	90 〜125 〜130	172〜252	132〜202	710	300	360	73	60	332. 18
MLL12-II-710					360				98		487.8
MLL13-I-800	12500	950	110〜140	212〜252	167〜202	800	340	400	73	60	450. 1
MLL13-II-800					400				98		730.7
Note: When Using Z And J Holes, Calculate Whether "※" Is Allowed For Conical Holes
