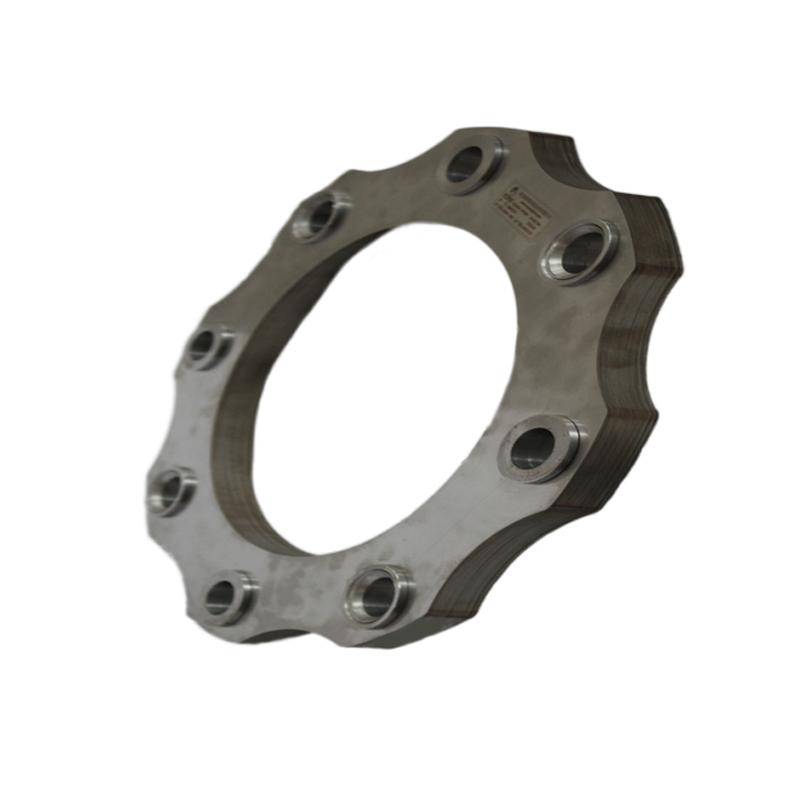

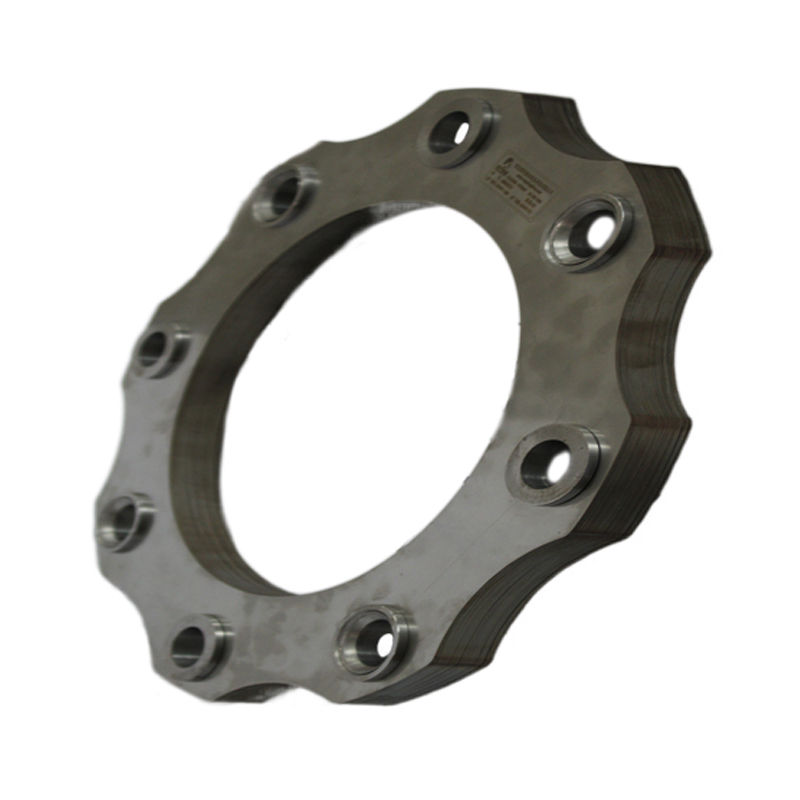

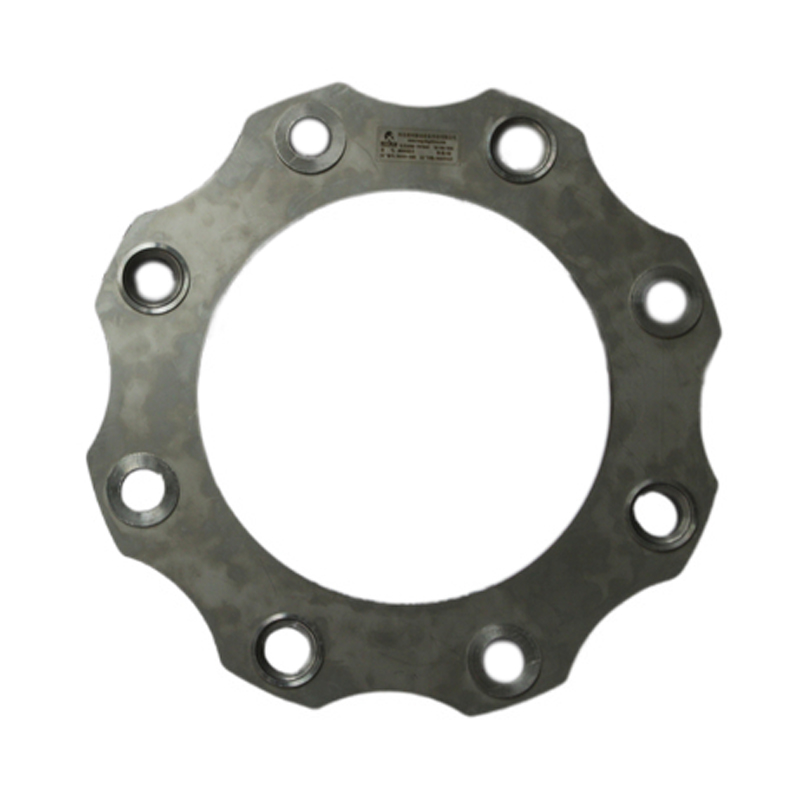

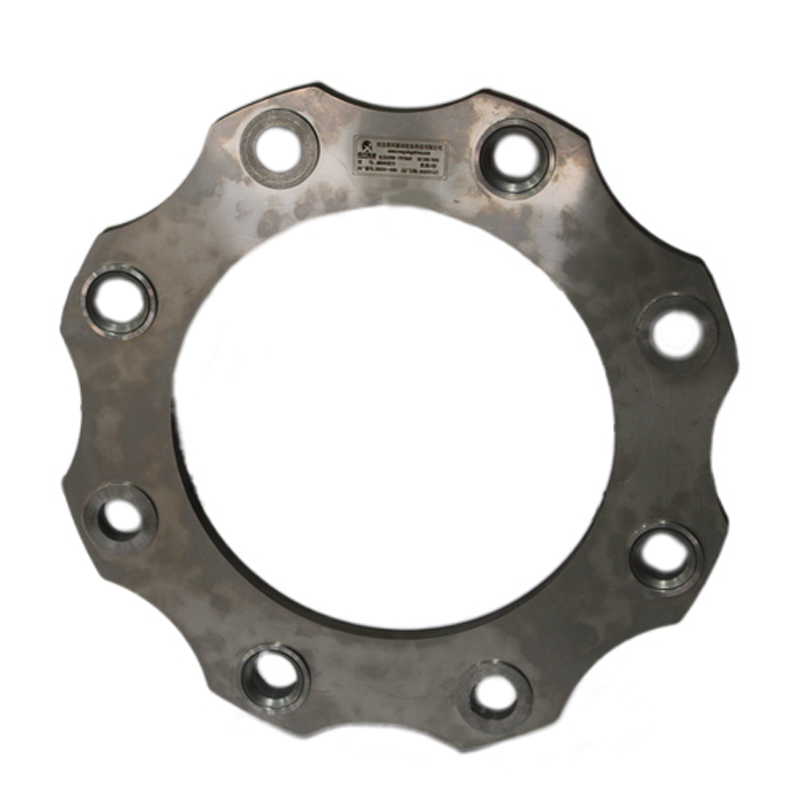

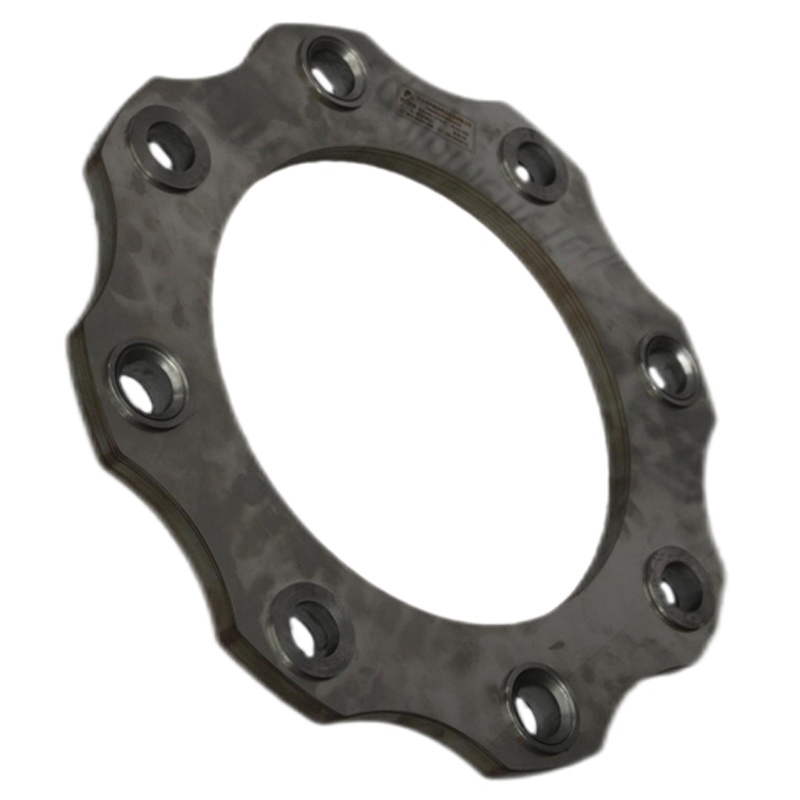

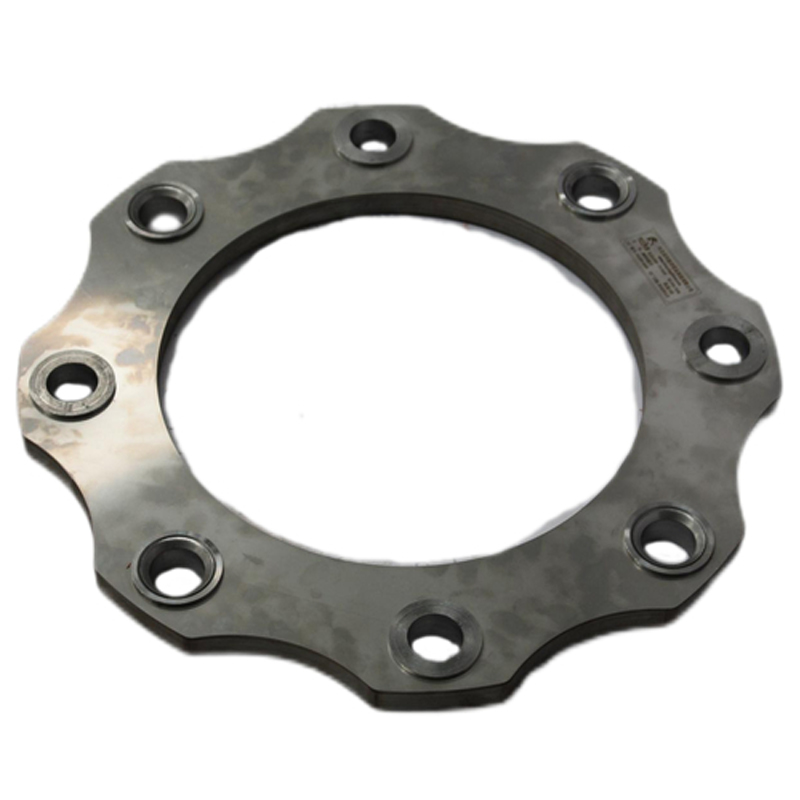

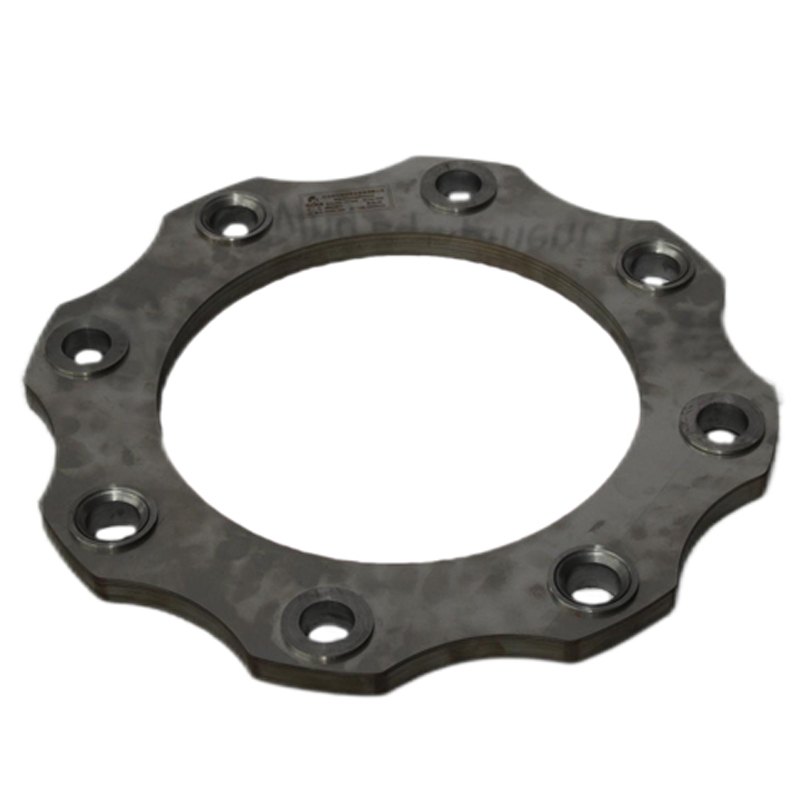

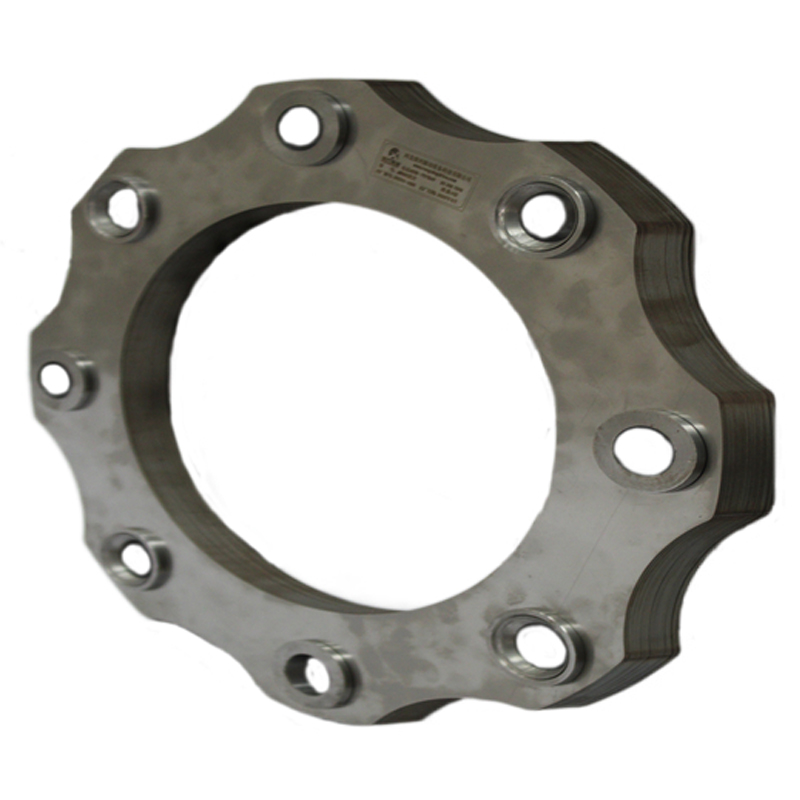

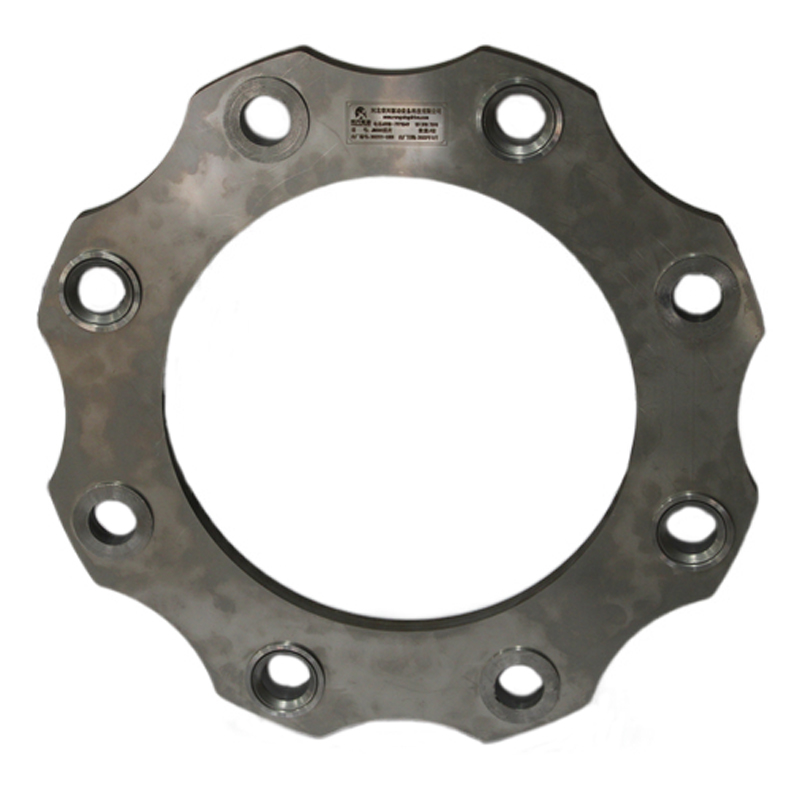

Diaphragm Coupling

Rongxing Driving is a professional R&D and manufacturer of elastic pin coupling , elastic coupling assembly. and has won unanimous praise from the majority of users.

INQUIRY

Product Details

JZM Heavy Machinery Diaphragm Coupling Main Parameters And Dimensions mm

Model	Nominal Torque TnN • m	Allowable Speed[n] r/min	Shaft Hole Diameter	Shaft Hole Length L	D	D,	S	Twisting Stiffness X106N • m/rad	Inertia Moment kg • m2	Weight kg
Model	Nominal Torque TnN • m	Allowable Speed[n] r/min	d	Y J,	D	D,	S	Twisting Stiffness X106N • m/rad	Inertia Moment kg • m2	Weight kg
JZM1	40	10700	14 〜28	27 〜62	80	39	8	0. 37	0. 0026	1.37
JZM2	63	9300	20 〜38	38 〜82	92	53	8	0. 45	0. 0073	2. 65
JZM3	100	8400	25 〜45	44 〜112	102	63	8	0. 56	0.013	4.8
JZM4	250	6700	30 〜55	60 〜112	128	77	11	0.81	0. 042	7. 64
JZM5	500	5900	35 〜65	60 〜142	145	91	11	1.2	0. 067	9.4
JZM6	800	5100	40 〜75	84 〜142	168	105	14	1.42	0. 165	17. 15
JZM7	1000	4750	45 〜80	84 〜172	180	112	15	1.9	0. 27	24.5
JZM8	1600	4300	50 〜85	84 〜172	200	120	15	2. 35	0. 387	29.4
JZM9	2000	4200	55 〜90	84 〜172	205	120	20	2. 7	0.41	30. 38
JZM10	2500	4000	55 〜90	84 〜172	215	128	20	3. 02	0.51	33.9
JZM11	3150	3650	60 〜95	107〜172	235	132	23	3. 46	0. 70	40. 18
JZM12	4000	3400	60 〜100	107〜212	250	145	23	3. 67	1. 13	55. 96
