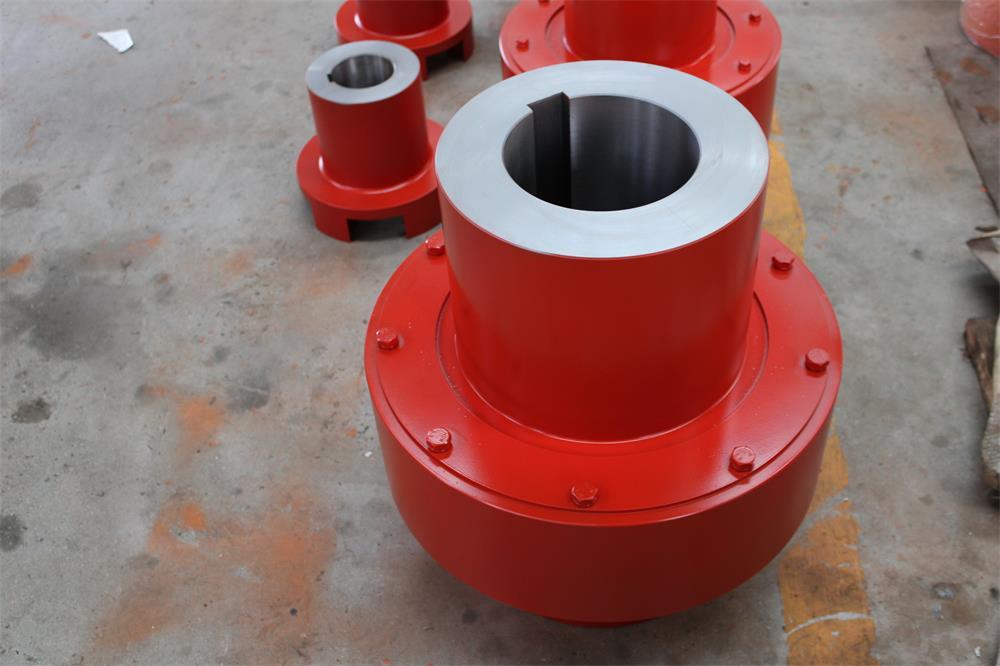

Working principle of elastic pin coupling:

01. The elastic pin coupling has good compensation for axial, radial and angular axis offset performance, good vibration

damping performance, simple structure, stable and reliable operation, no noise, no need for lubrication, easy maintenance,

simple assembly and disassembly, It has good craftsmanship, low cost, can be derived into various structural forms, has

good versatility, has a wide range of applications, and is easy to promote.

02. The elastic pin coupling is composed of two half couplings with the same structure. The only difference between the two

is the assembly size of the shaft. The two half couplings are connected by a pin with elastic elements. The coupling The

torsional shock absorber of the device is a ring sleeve, which is connected and centered in the end disk. An intermediate ring

is installed between the elastic elements on the pin. The ring sleeve floats and is connected with the mutually centered end

disks. The pin connection covers the two half couplings along the end surface. The torque is transmitted from one half coupling

to the other half coupling through the elastic element mounted on the pin. The pin and half coupling are non-rigidly connected,

so that the pin is loaded smoothly and the lateral force can be greatly reduced.

03. The elastic pin coupling uses several pins made of non-metallic elastic materials, which are placed in the flange holes of the

two half couplings. The two halves of the coupling are connected through the pins. The coupling has a simple structure. , the easy-

to-make pin is in a state of shearing and extrusion during operation. Its strength condition is to calculate the shear strength on the

cross section of the elastic pin and the extrusion strength of the pin and the pin hole wall. Stress occurs in elastic pin couplings: due

to differences in internal and external heating of the metal, uneven expansion produces internal stress, which is called thermal stress.

If the temperature is too high during annealing and the graphite cross section is formed, it will be difficult to cut and process and it

will cause overheating and deformation during quenching. Decarburization causes soft spots to appear on the surface of the workpiece,

reducing the hardness, wear resistance and fatigue strength of the surface. The basic parameters and dimensions of elastic pin couplings

are mainly specified for the shaft hole diameter ≧12mm.

Disadvantages of elastic pin couplings:

When replacing the elastic element of the elastic pin coupling, the half coupling must be moved. However, the structure is complex,

the cost is high, the mass and moment of inertia are increased, and the application range is limited. When transmitting the same torque,

the radial size is larger than that of the elastic sleeve column. Pin couplings are much smaller, lighter in mass and have less moment of

inertia. One of the outstanding advantages of this coupling is that it only needs one centering installation. When replacing the elastic

element, there is no need to move the coupling half, which can reduce auxiliary man-hours and improve production efficiency. It is

especially suitable for installations where axis centering is difficult and requires as little effort as possible. When assisting, improve

production efficiency
