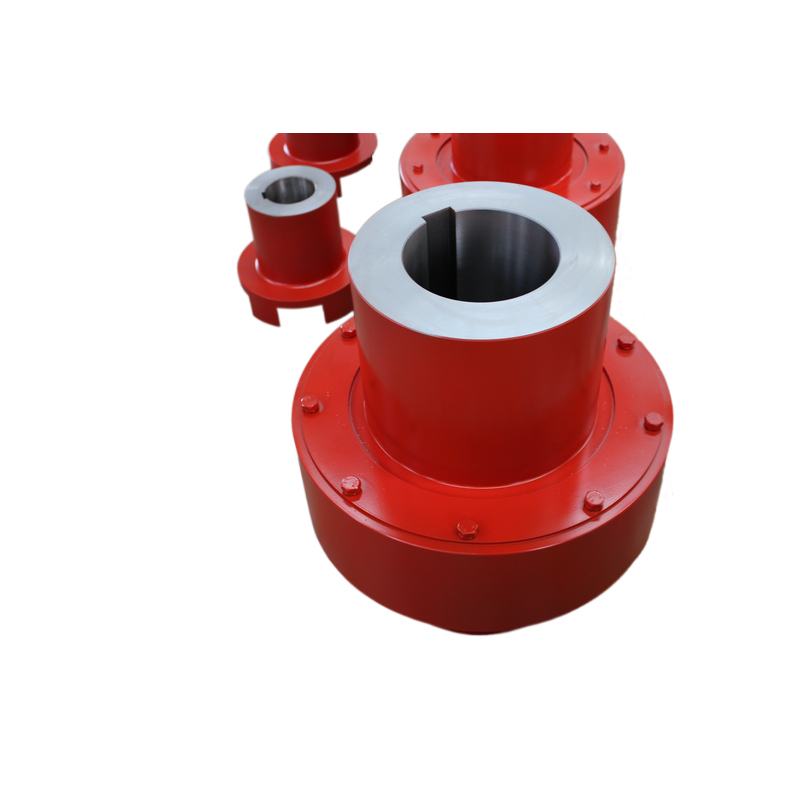

Zl Type Elastic Pin Tooth Coupling
Rongxing Driving is a professional R&D and manufacturer of Elastic Coupling , HL Type Elastic Pin Coupling , Plum Blossom Flexible Coupling . and has won unanimous praise from the majority of users.
INQUIRY

Product Details





                           Zl Type Elastic Pin Tooth Coupling Main Parameters And Dimensions                                    mm

ModelNominal Torque TnKN • mAllowable Speed [n] r/minShaft Hole Diameter dShaft Hole LengthDD,BSkg. m2Weight kg
Y丄J1
L
ZL10. 112500012 〜2427 〜527640422.50. 0011.67
ZL20. 25500016 〜3244 〜829050502.50. 0033. 00
ZL30. 63450025 〜4244 〜11211865703.00.0127.31
ZL41.8420040 〜6084 〜142158909040. 04516. 20
ZL54.5400050 〜8084 〜1721921209040. 10827. 02
ZL68330060 〜95107〜17223013011250. 24240. 89
ZL711.2290070 〜110107〜21226016011250. 44359. 60
ZL818250080 〜130132〜25230019012860. 90894. 67
ZL925230090 〜150132〜25233522015071.733138. 1
ZL1031.52100100〜170167〜30235524515282. 422169.3
ZL11402000110〜180167〜30238026017283. 369203. 1
ZL12631700130〜200202〜35244529018286. 524296.6
ZL131001500150〜240202〜410515345218814. 19469.2
ZL141251400170〜260242〜410560390218821.67621. 7
ZL151601300190〜300282〜4705904202401029.52730.5
ZL162501000220〜340282〜5506954902651062. 471144
ZL17355950240〜380330〜55077055028510106.01557
ZL18450850250〜420330〜65086060530013175.42062
ZL19630750280〜450380〜65097069532214323.23068
ZL201120650320〜500380〜650116080035515699.44715
ZL211800530380〜630450〜800144010203601818808699
ZL222240500420〜750540〜800152011004051925969473
ZL232800460480〜850540〜8801640124044020398212095
Note: 1. Weight and moment of inertia are calculated according to Y/J, combination type of shaft holes and minimum shaft holes. 2. Short-term overload shall not exceed 2 times of the nominal torque Tn value.
