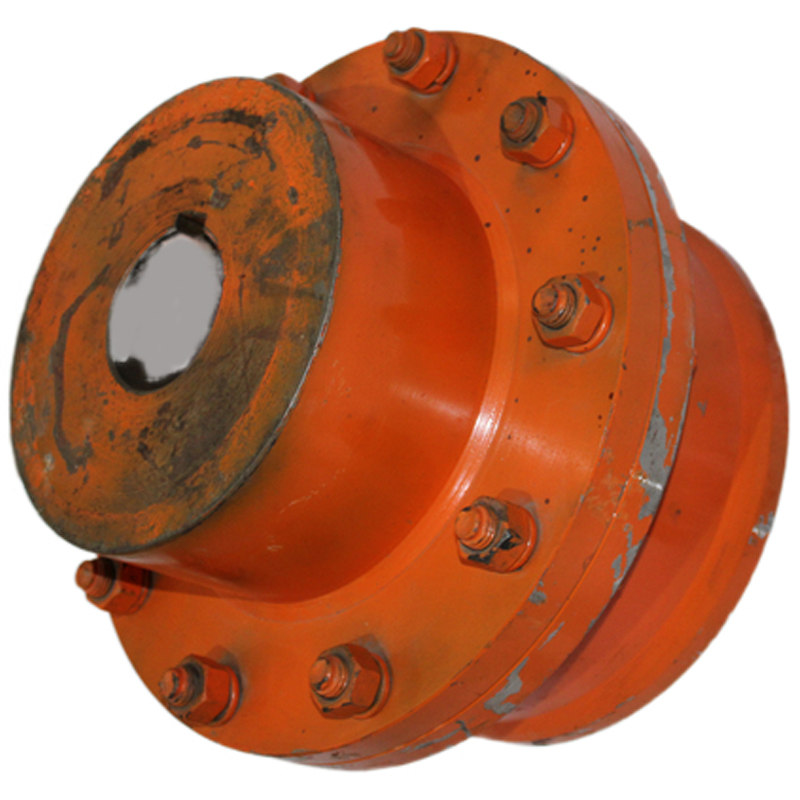

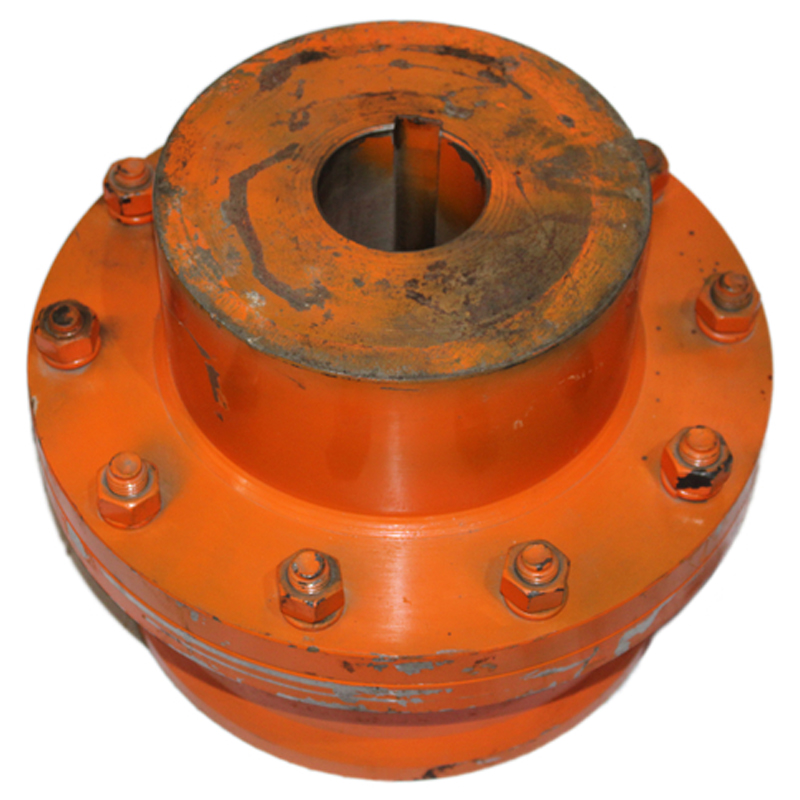

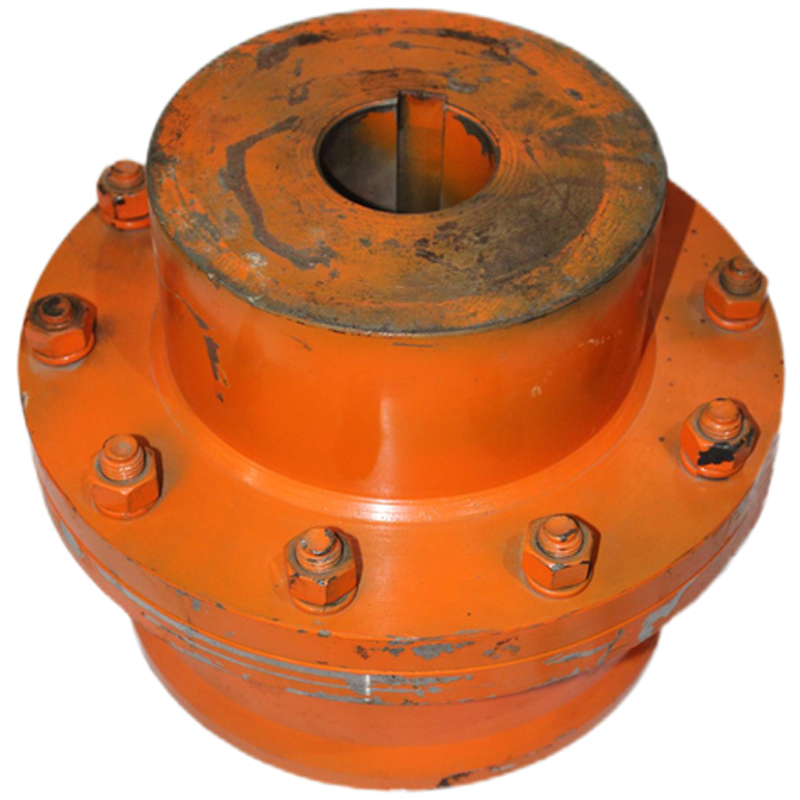

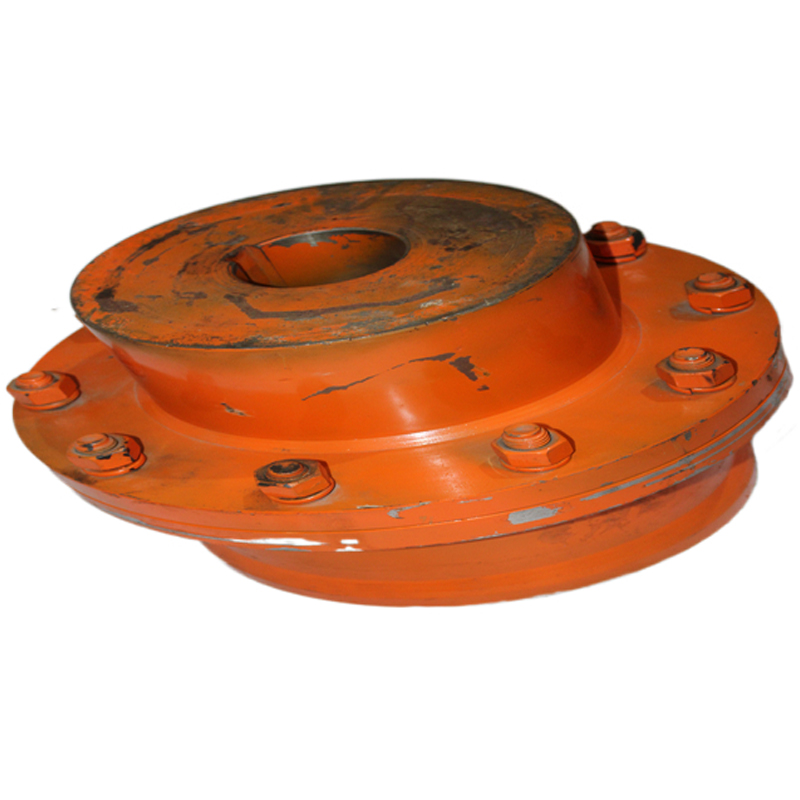

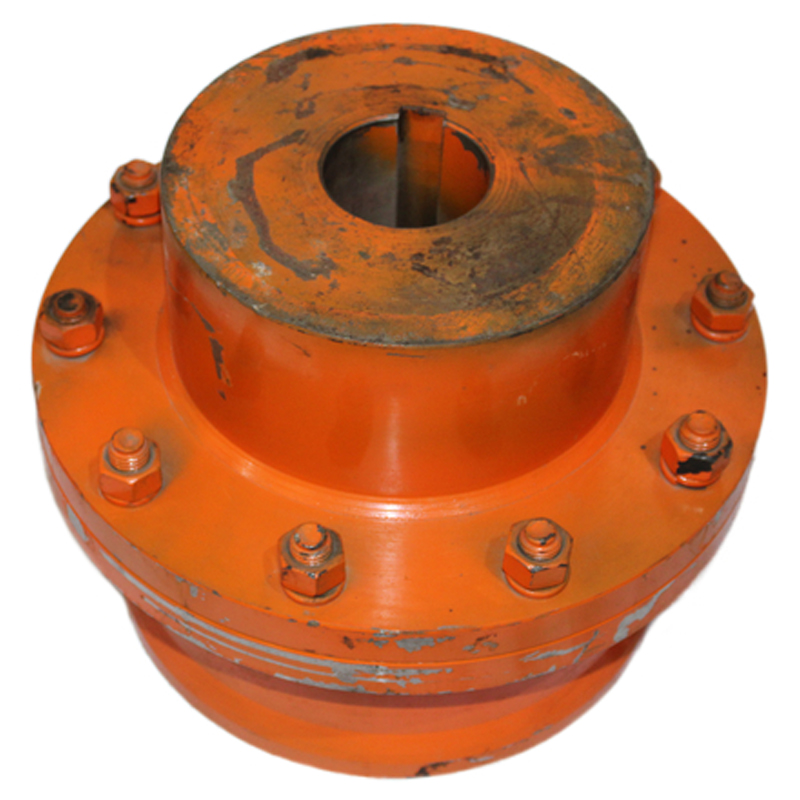

CLZ Type Tooth Coupling

Rongxing Driving is a professional R&D and manufacturer of Brake Gear Coupling , drum gear coupling , Disc Gear Coupling . and has won unanimous praise from the majority of users.

INQUIRY

Product Details

CLZ type tooth coupling basic parameters and main dimensions

Model	Nominal Torque Tn KN • m	Allowable speed[n] r/min	Shaft hole diameter d, dz	Shaft hole length L Y	D	D,	d2	D3	C	Inertia moment kg • m2	Weight kg
CLZ1	0. 71	3780	18 〜40 (60)	40 〜142	170	110	55	95	2.5	0. 03	11.8
CLZ2	1.4	3000	30 〜50 (70)	82 〜142	185	125	70	110	2.5	0.06	16.6
CLZ3	3. 15	2400	40〜60(90)	112—172	220	150	90	145	2.5	0.12	34.8
CLZ4	5.6	2000	45〜75(100)	112 〜212	250	175	110	170	2.5	0. 22	47.8
CLZ5	8	1680	50〜90(120)	112〜212	290	200	130	190	5	0.44	67.3
CLZ6	11.2	1500	60 〜110(130)	142〜252	320	230	140	210	5	0. 75	91
CLZ7	18	1270	65 〜120 (150)	142〜252	350	260	170	240	5	1.25	125
CLZ8	23.6	1140	80 〜140 (170)	172 〜302	380	315	190	270	5	2.06	174
CLZ9	28	1000	90 〜160 (190)	172 〜352	430	365	210	280	5	2. 56	210
CLZ10	50	850	110〜180(220)	212〜352	490	420	260	320	5	5	298
CLZ11	71	750	120—220(250)	212〜410	545	470	300	380	5	9. 25	447
CLZ12	100	660	140—250(280)	252〜470	590	520	340	420	5	12.5	630
CLZ13	140	600	160—280(300)	302〜470	680	590	380	480	7.5	29.9	897
CLZ14	200	540	180—320(340)	302〜550	730	650	420	520	7.5	42.5	1118
CLZ15	250	480	200〜360(380)	352〜550	780	700	480	560	7.5	56.9	1495
CLZ16	355	425	240〜360(420)	410〜650	900	785	530	650	10	120	2008
CLZ17	560	380	260〜450(480)	410〜650	1000	885	630	750	10	252	3021
CLZ18	710	330	300〜530	470〜800	1100	990	710	820	10	325	4004
CLZ19	1000	300	360〜560	550〜800	1250	1090	800	920	15	568	5458
Note: 1. The size of mark () in the table is only suitable for D, the maximum allowable shaft hole. 2. The weight and moment of inertia of the coupling are approximate values calculated according to the minimum diameter and maximum length of the shaft hole. 3. The value of C CLZ is 16 when 19 out of 18 shaft holes and 6 when 24 out of 22 out of 20 shaft holes.
