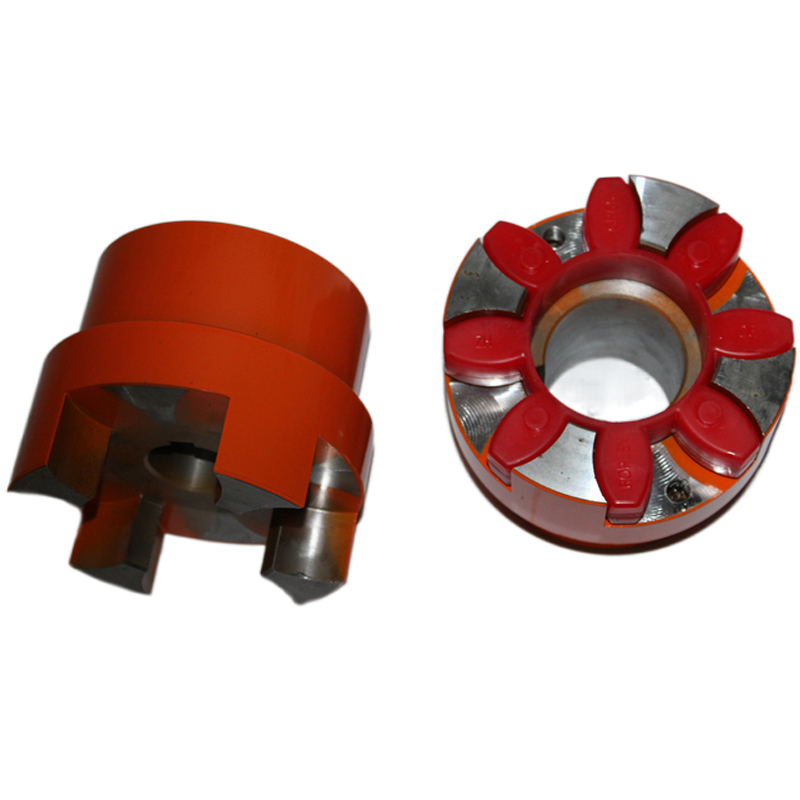

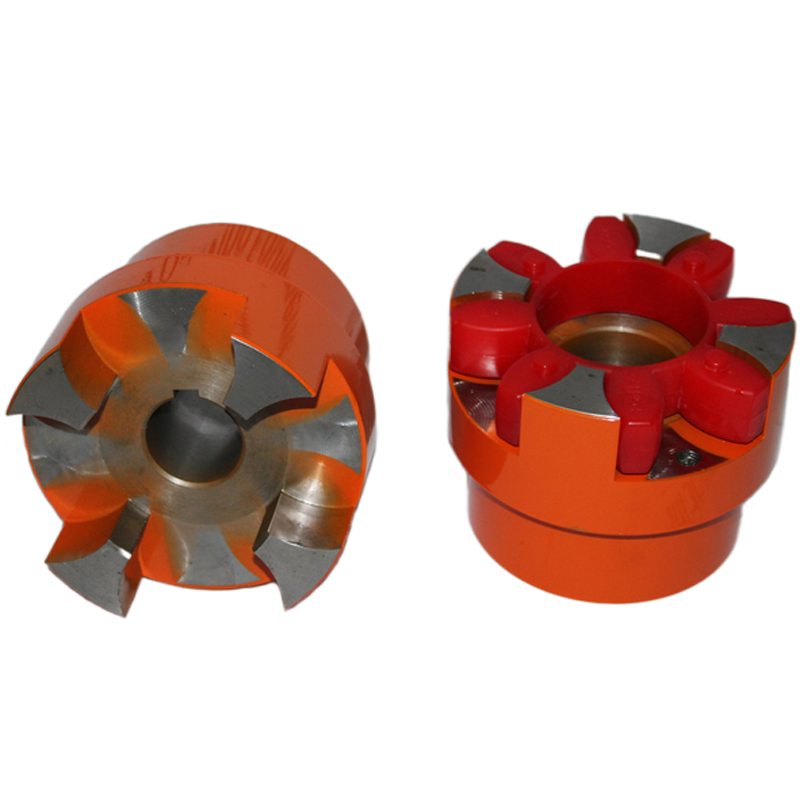

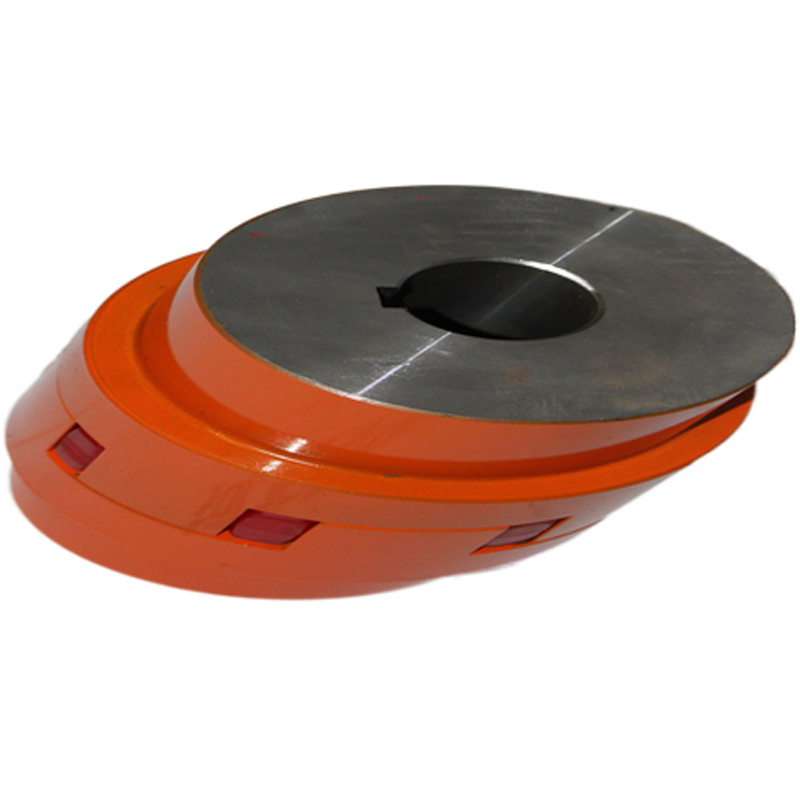

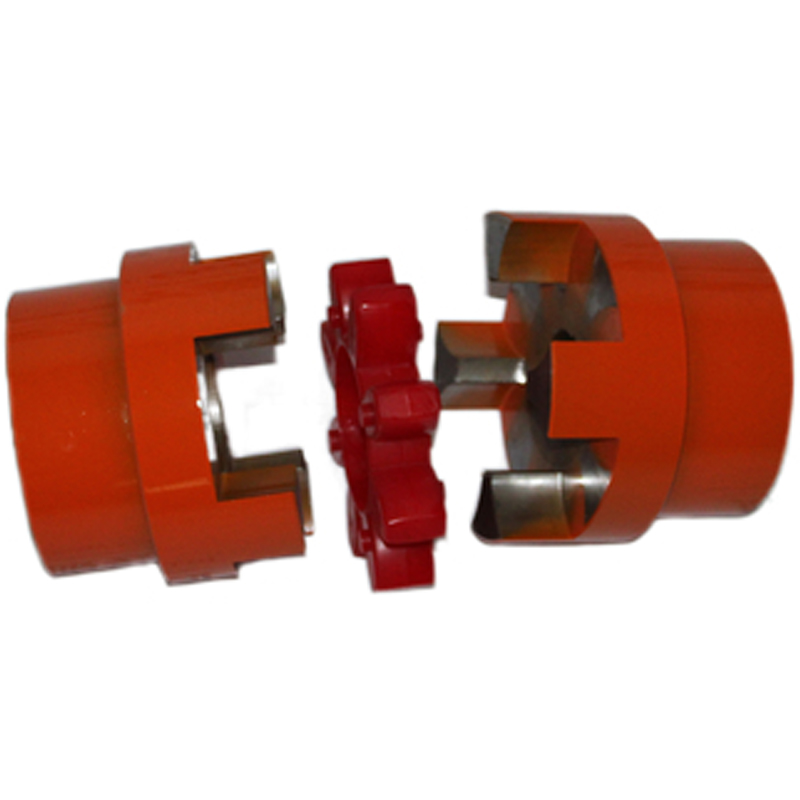

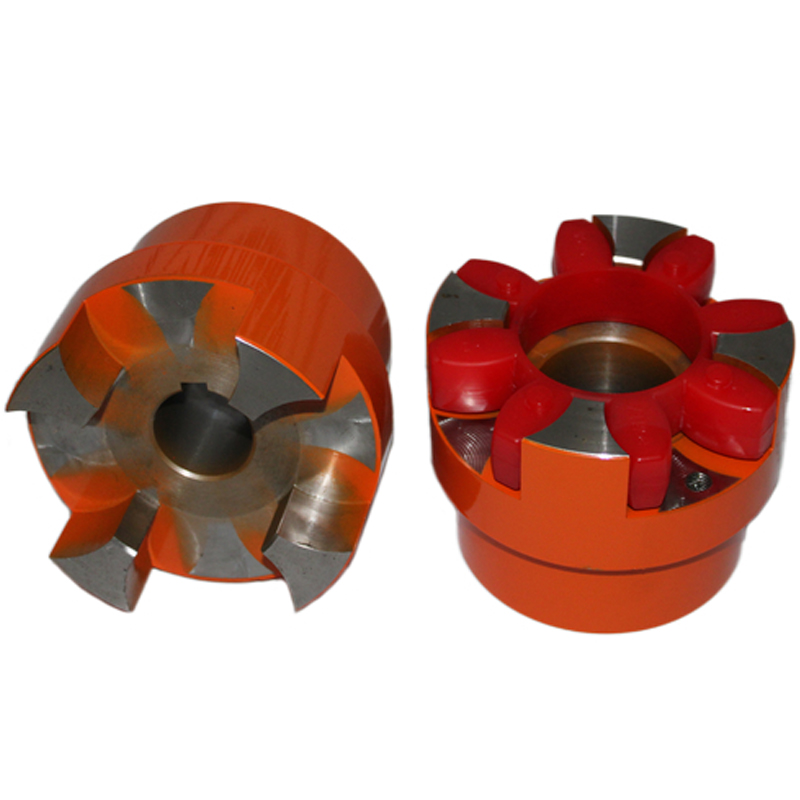

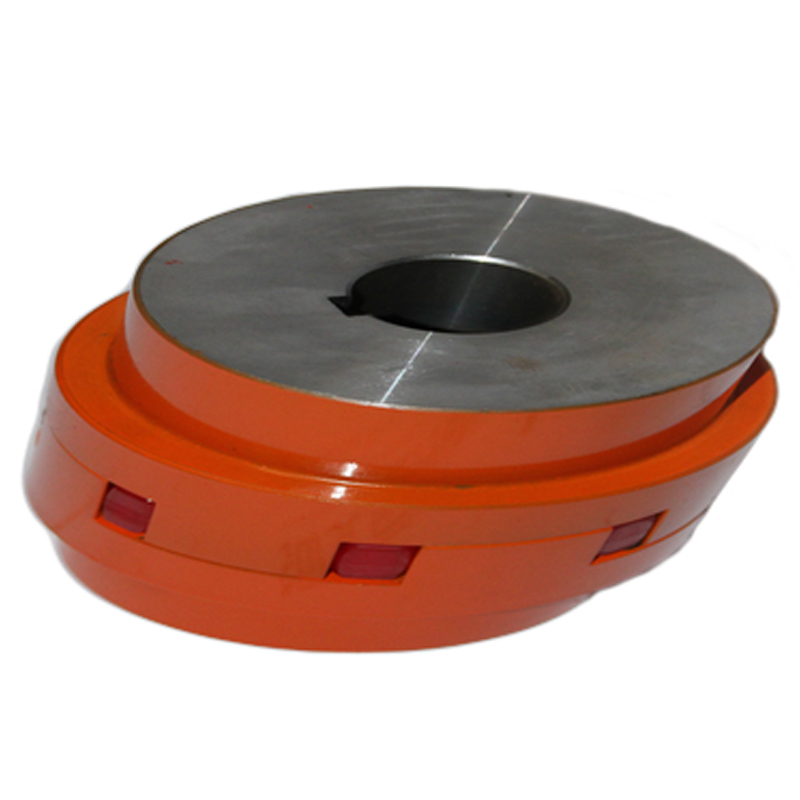

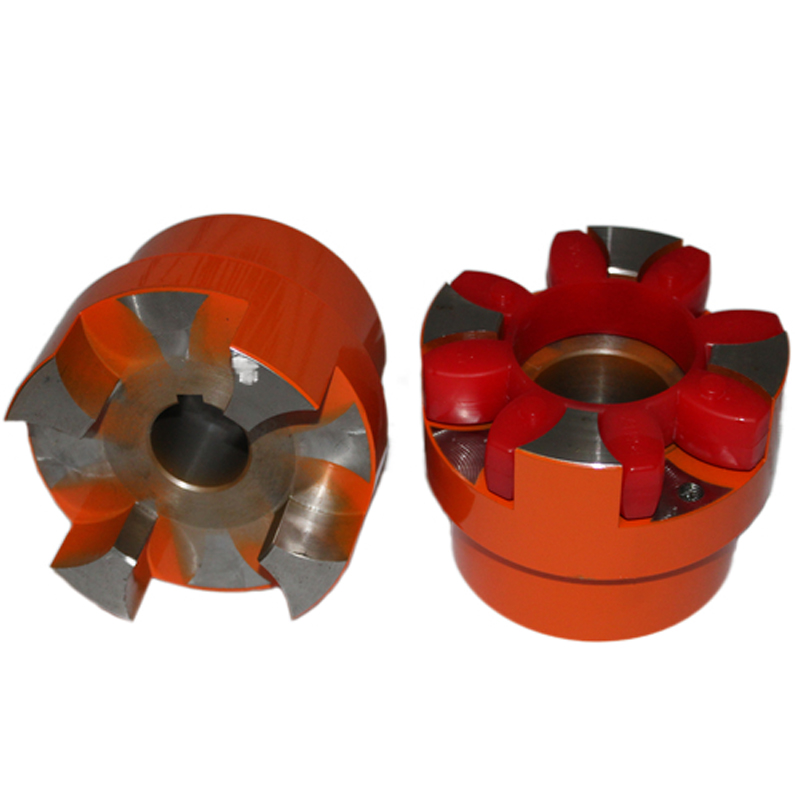

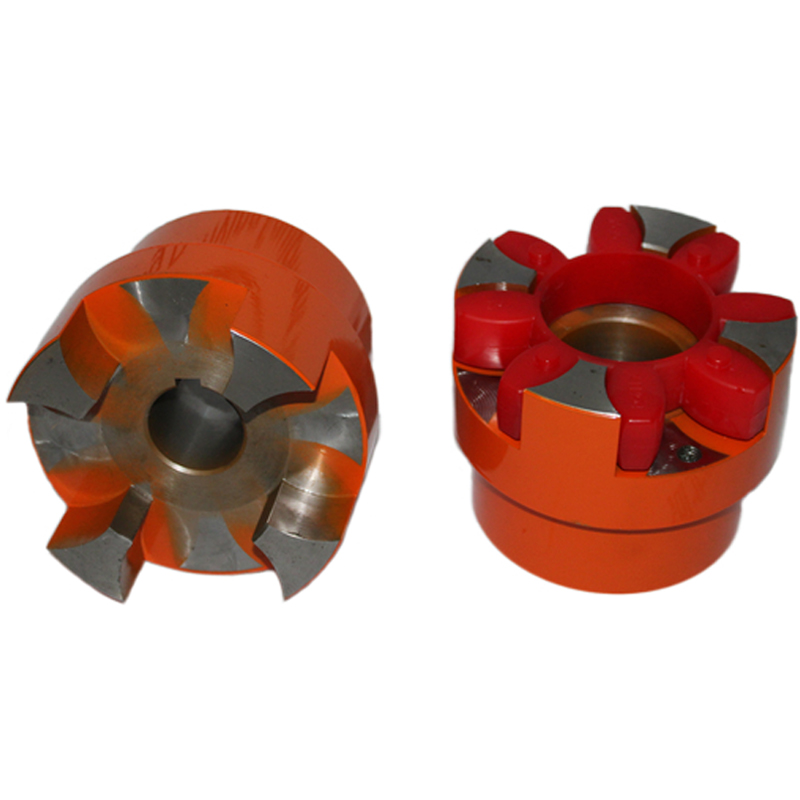

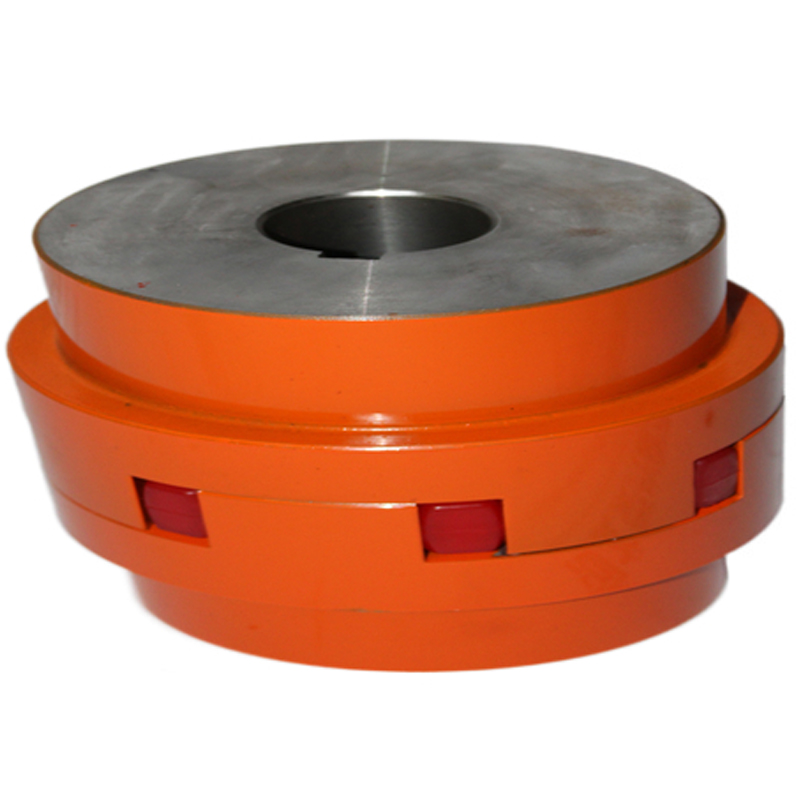

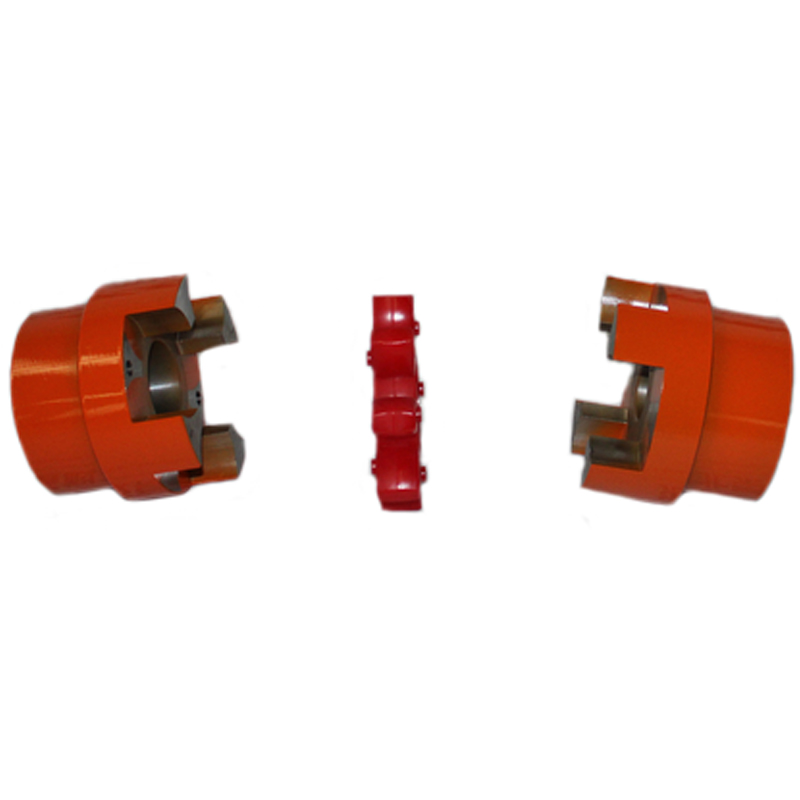

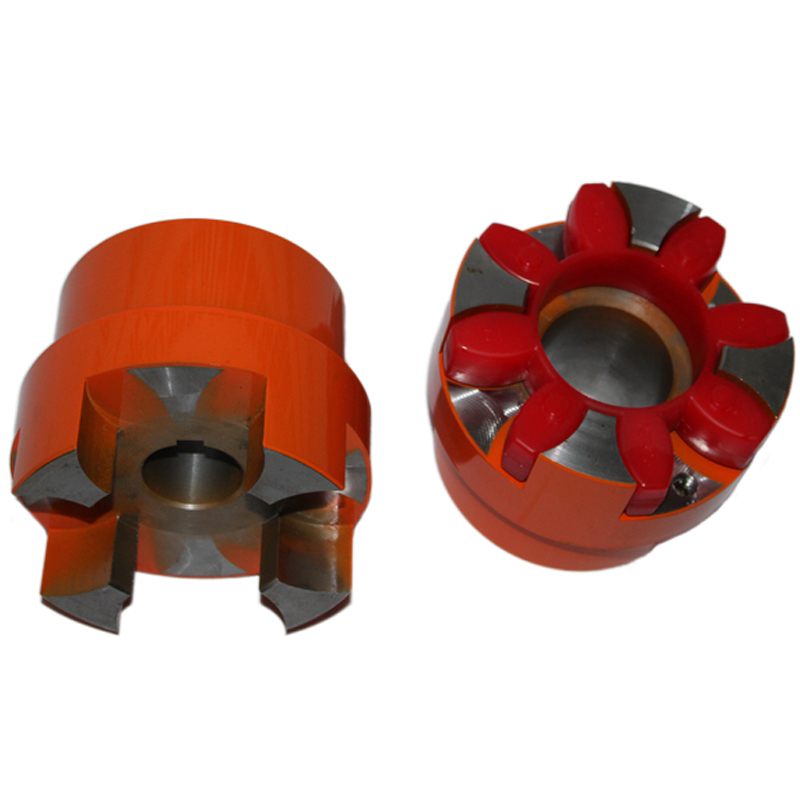

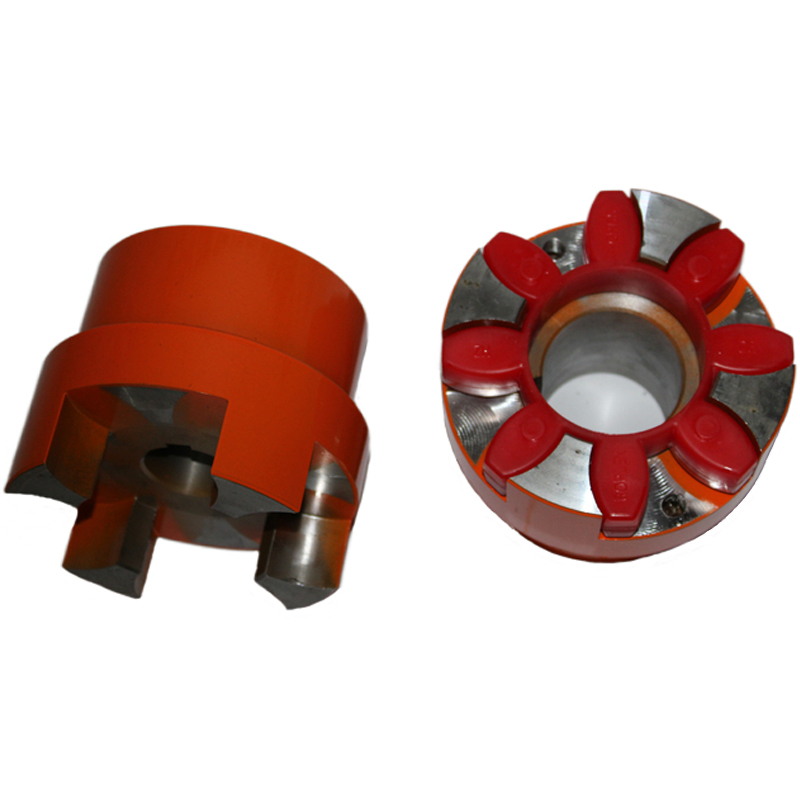

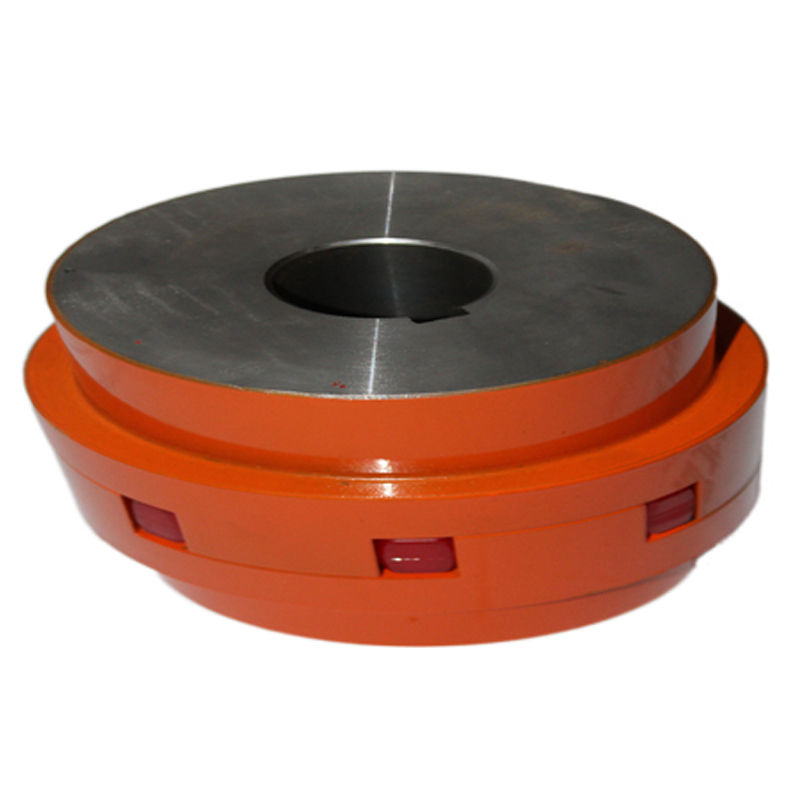

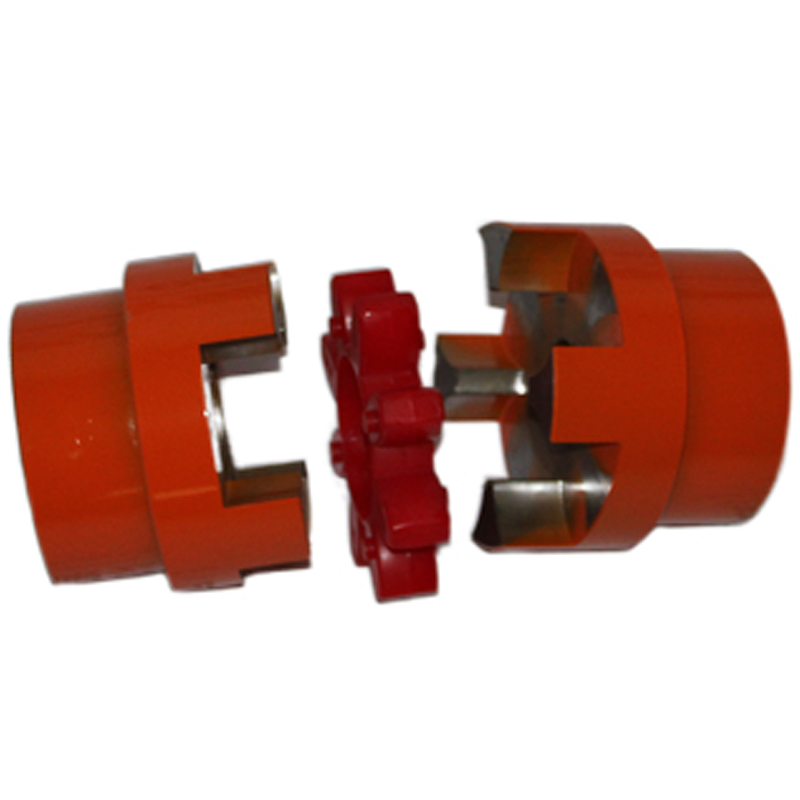

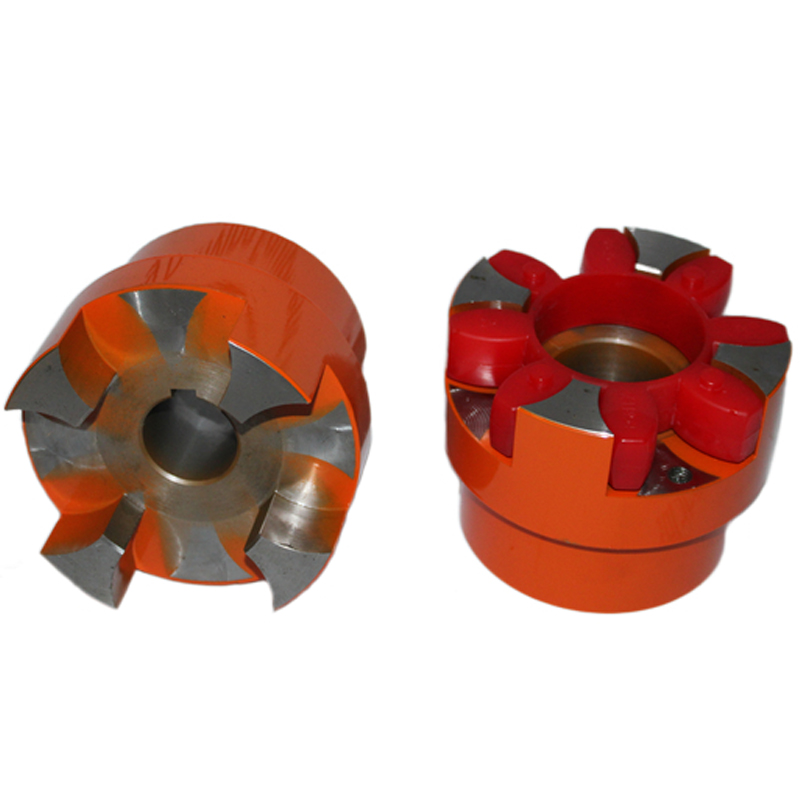

Xl Star Flexible Coupling
Rongxing Driving is a professional R&D and manufacturer of shaft hole elastic coupling , hole elastic coupling , conical shaft elastic coupling. and has won unanimous praise from the majority of users.
INQUIRY

Product Details




                                  Basic Parameters And Main Dimensions Of Xl Star Elastic Coupling              mm

Model

Nominal Torque Tn N • m

Allowable speed r/mi n

Shaft hole diameter d, d2

Shaft hole length L

D

D,

D,

E

S

Inertia moment(kg. m2)

Weight(kg)

XL1

34

19000

6〜19〜24次

25

40

32

40

16

2

0. 0008

0. 328

XL2

120

14000

8〜24〜28次

30

55

40

55

18

2

0. 0003

0. 66

XL3

320

11800

10〜28〜38淤

35

65

48

65

20

2.5

0. 0007

1. 16

XL4

650

9500

12〜38〜45次

45

so

66

78

24

3

0. 002

2. 27

XL5

900

8000

14〜42〜55次

50

95

75

94

26

3

0. 005

3. 57

XL6

1050

7100

15〜48〜60淤

56

105

85

104

28

3.5

0. 008

4. 80

XL7

1250

6300

20〜55〜70次

65

120

98

118

30

4

0.016

7. 37

XL8

1280

5600

22〜65〜75淤

75

135

115

134

35

4.5

0. 031

10. 89

XL9

2930

4750

30〜75〜90次

85

160

135

158

40

5

0. 068

17. 73

XL10

7200

3750

40〜90〜100次

100

200

160

180

45

5. 5

0. 159

29. 60

XLU

9900

3350

50〜100〜110淤

110

225

180

200

50

6

0. 277

41.0

XL12

12000

3000

60〜110〜125淤

120

255

200

230

55

6.5

0.51

58.6

XL13

15000

2650

60〜125〜145淤

140

290

230

265

60

7

1.0

88.4

XL14

22000

2360

60〜140〜165次

155

320

255

300

65

7.5

1.7

120.6

XL15

30000

2000

80〜160〜190淤

175

370

290

345

75

9

3. 35

179. 1

XL16

35000

1800

85〜180〜220次

195

420

325

400

85

10.5

6. 37

261.0

Note: 1. No. ※ is the maximum allowable shaft hole.

2, d,/d2, d,/d, d2/d2 can be any combination.

3. The size of countersunk hole should be calculated when using taper hole.
