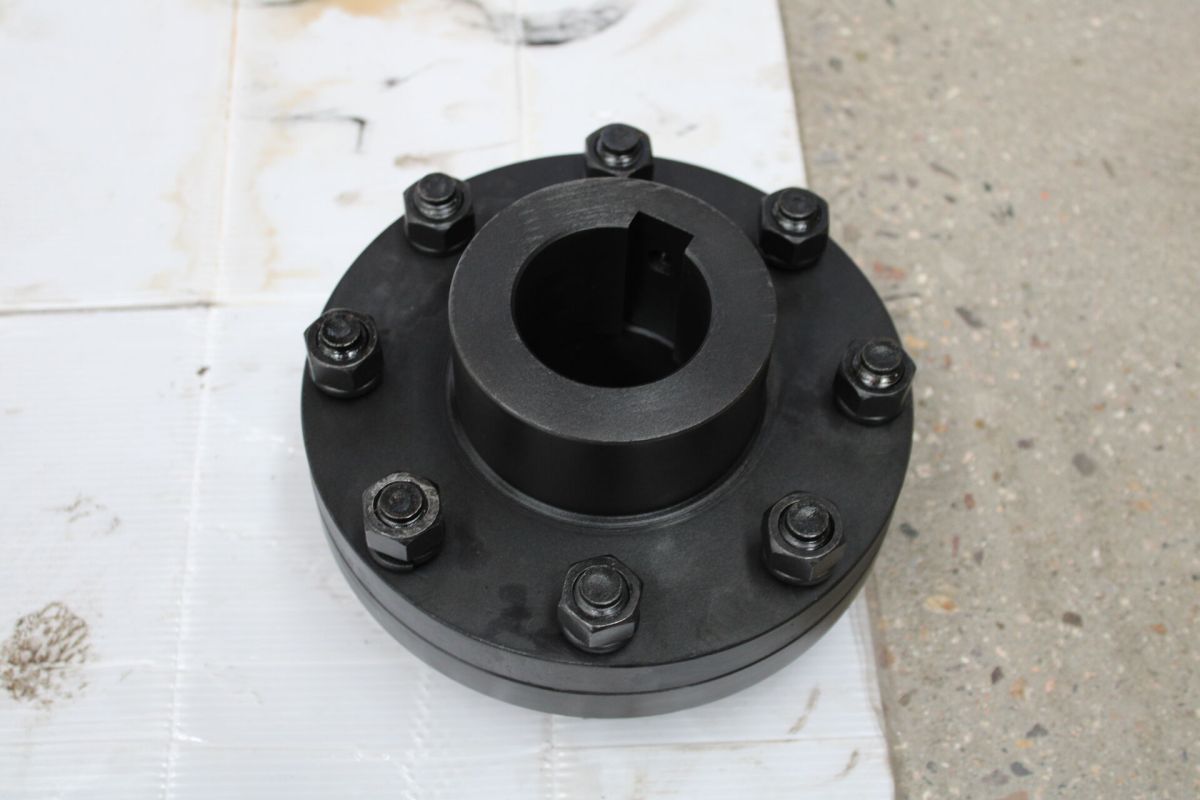

Choice of rigid flange coupling type and model:

For the choice of rigid flange coupling type and model, we can simply say that it is necessary to consider the mechanical equipment needed to transfer shaft speed and the size of the load or the installation accuracy of the connected two parts, stability of rotation, price, use occasions, etc. The choice of direction is to refer to the characteristics of various types of coupling, select a suitable type of coupling transmission parts. Also need to take into account the high-speed transmission, should choose the coupling with high balance precision, need to do dynamic balance processing, and then according to the required transfer of torque size and nature and the requirements of the vibration buffer function one by one screening.

The comprehensive function of rigid flange coupling:

Selection of rigid flange coupling type and type in the process. We all need to understand the comprehensive function of the coupling transmission parts in the transmission system of mechanical equipment, from the overall design of the transmission system, choose the type and type of coupling. We also need to choose the type of coupling transmission parts according to the comprehensive factors such as the original motor category of mechanical equipment and the working load category, working speed, transmission accuracy, two shaft offset, temperature, humidity, working environment and so on.

To sum up:

Select rigid flange coupling type and type or specification. It is necessary to select the type of coupling transmission parts according to the load category, speed, working environment and other comprehensive factors of the power engine and coupling transmission parts; The coupling type is selected according to the matching and coupling condition of the rigid flange coupling. Select specifications according to nominal torque, shaft hole diameter and shaft hole length. In order to _ shaft and key strength, in the selection of the coupling model, the shaft and key strength should be checked to determine the model of the coupling transmission.
