GIICLD type drum gear coupling is a common rigid flexible coupling, usually its structure is composed of the same number of teeth of the inner ring and flange half coupling with outer teeth and other parts. And its external teeth are divided into straight teeth and drum teeth two kinds of teeth, drum teeth coupling can allow large angular displacement (relative to the straight teeth coupling), can improve the contact conditions of the teeth, improve the ability to transfer torque, prolong the service life.

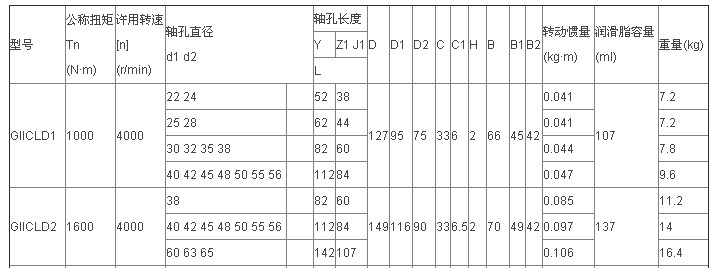

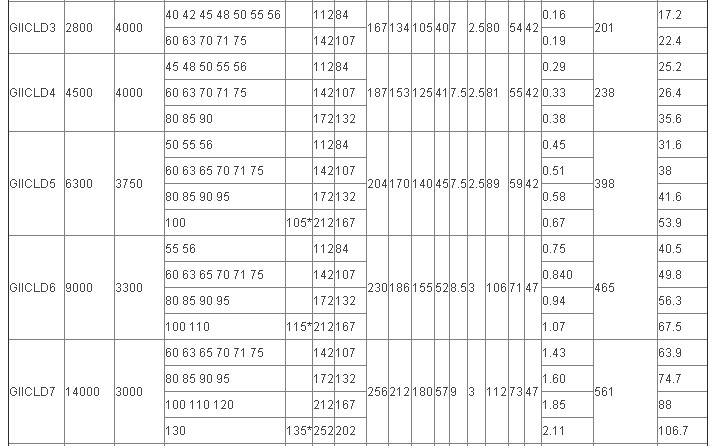

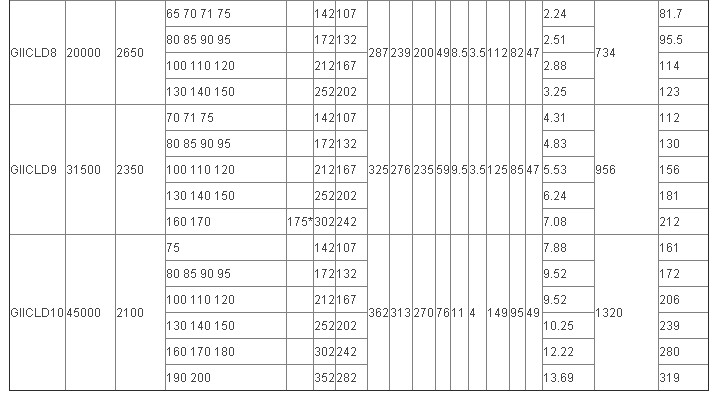

GIICLD type drum gear coupling code JB/ZQ4380-86, it is more suitable for connecting two horizontal coaxial axis transmission shafting, has the corresponding angular compensation two axis relative offset performance of drum gear coupling, plus intermediate shaft long distance work, working temperature -20~+80℃, nominal transfer torque is 0.4-4500KN.m; Today, we bring you the basic parameter table of GIICLD type drum gear coupling:

Tips: GIICLD type drum gear coupling in order to enhance the lubrication sealing effect, reduce the number of parts, so as to improve the reliability of operation, it is recommended to choose the sealing end cover and inner gear ring as a whole structure.
